Multifunction Peripheral IC featuring an 8-bit 8051 core architecture operating at up to 50MHz. This CMOS component offers 32KB of FLASH memory and 4KB of RAM, with 38 GPIO pins and 46 programmable I/O options. Integrated peripherals include I2C, SPI, USB, UART, USART, EBI/EMI interfaces, along with POR, PWM, WDT, DMA, LCD, and CapSense functionality. Housed in a QFN package with gold contact plating, it operates from 1.7V to 5.5V and is RoHS compliant.
Frequency50MHz
PackageQFN
Quick Jump:
Technical Specifications
Cypress CY8C3445LTI-079 technical specifications.
General
Package/Case
QFN
Contact Plating
Gold
Core Architecture
8051
Data Bus Width
8b
Frequency
50MHz
Interface
I2C, SPI, USB, UART, USART, EBI/EMI
Lead Free
Lead Free
Max Frequency
50MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
32KB
Memory Type
FLASH,
Min Supply Voltage
1.7V
Number of GPIO
38
Number of I/Os
38
Number of Programmable I/O
46
Number of Timers/Counters
4
Oscillator Type
Internal
Package Quantity
260
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA, LCD, CapSense
Radiation Hardening
No
RAM Size
4KB
RoHS Compliant
Yes
Series
PSOC® 3 CY8C34xx
Technology
CMOS
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Cypress CY8C3445LTI-079 Datasheet
Download the complete datasheet for Cypress CY8C3445LTI-079 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

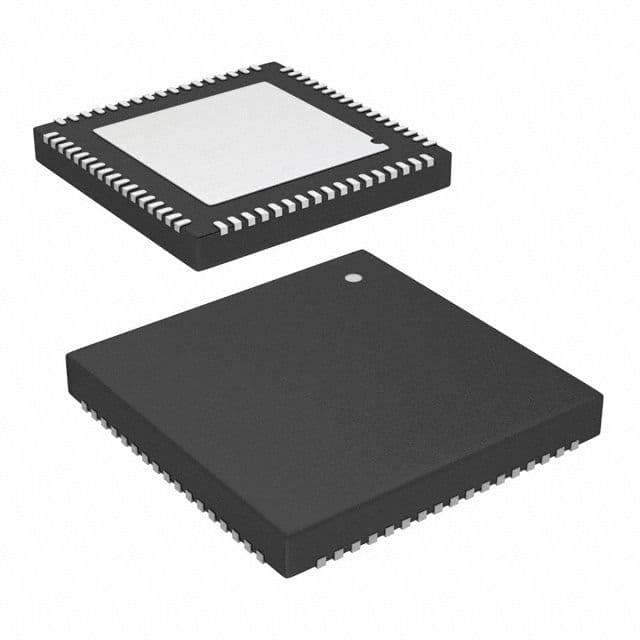

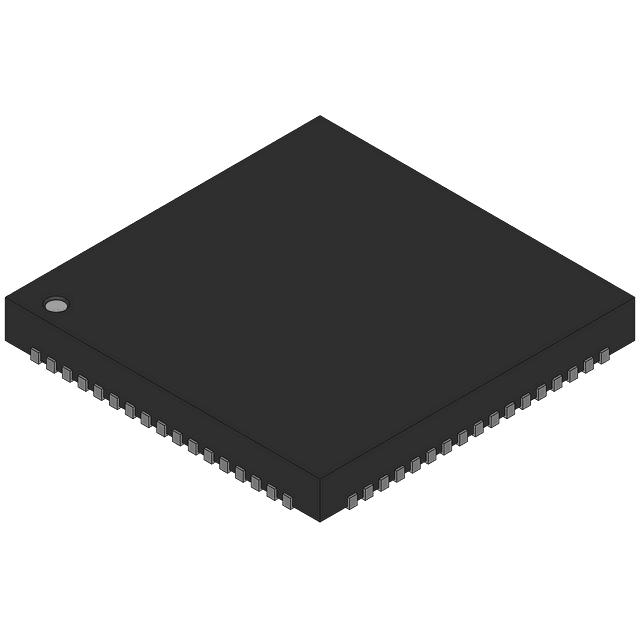

Product Images
