Multifunction Peripheral IC featuring an 8051 core architecture operating at up to 67MHz. This CMOS device offers 8-bit data bus width and 64KB FLASH memory with 8KB RAM. Integrated peripherals include I2C, SPI, USB, UART, USART, LIN, EBI/EMI interfaces, 38 programmable I/Os, and 4 timers/counters. Packaged in QFN with gold contact plating, it operates from 1.7V to 5.5V supply voltage and across a -40°C to 85°C temperature range.
Frequency67MHz
PackageQFN
Quick Jump:
Technical Specifications
Cypress CY8C3666LTI-027 technical specifications.
General
Package/Case
QFN
Contact Plating
Gold
Core Architecture
8051
Data Bus Width
8b
Frequency
67MHz
Interface
I2C, SPI, USB, UART, USART, LIN, EBI/EMI
Lead Free
Lead Free
Max Frequency
67MHz
Max Operating Temperature
85°C
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.7V
Number of GPIO
38
Number of I/Os
38
Number of Programmable I/O
38
Number of Timers/Counters
4
Oscillator Type
Internal
Package Quantity
260
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA, LCD, CapSense, I2C
Radiation Hardening
No
RAM Size
8KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PSOC® 3 CY8C36xx
Technology
CMOS
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Cypress CY8C3666LTI-027 Datasheet
Download the complete datasheet for Cypress CY8C3666LTI-027 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

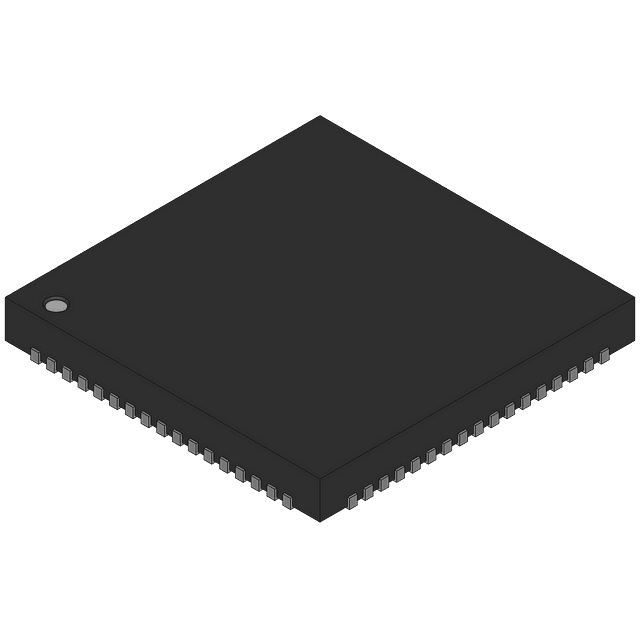

Product Images
