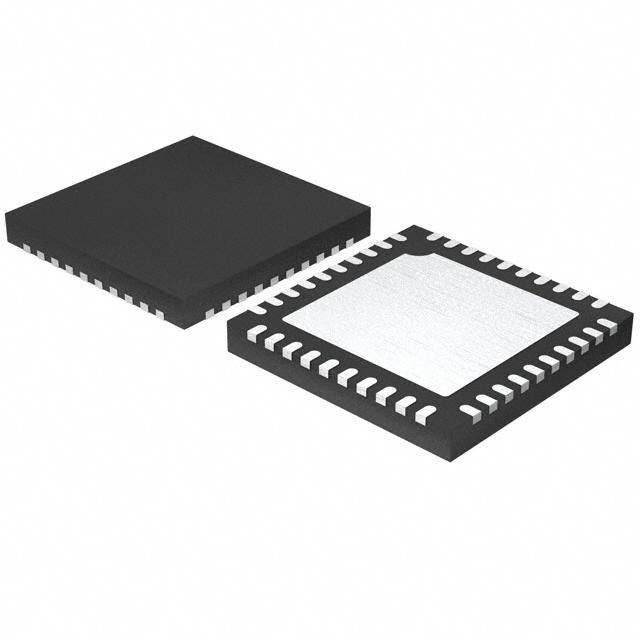

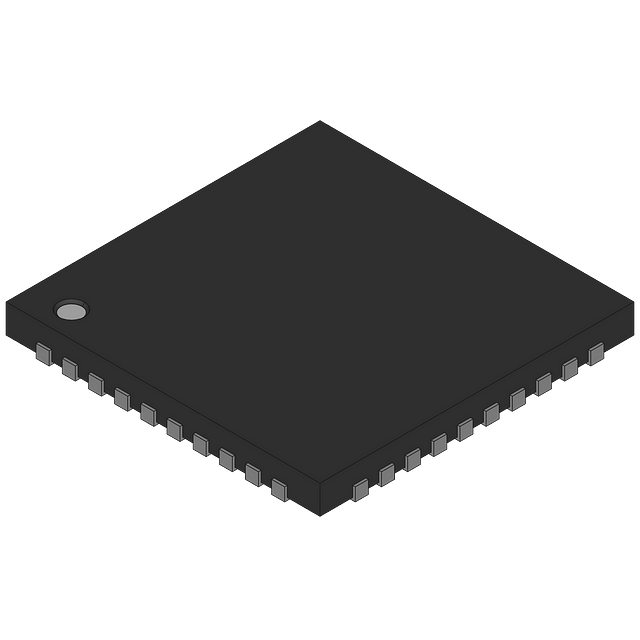

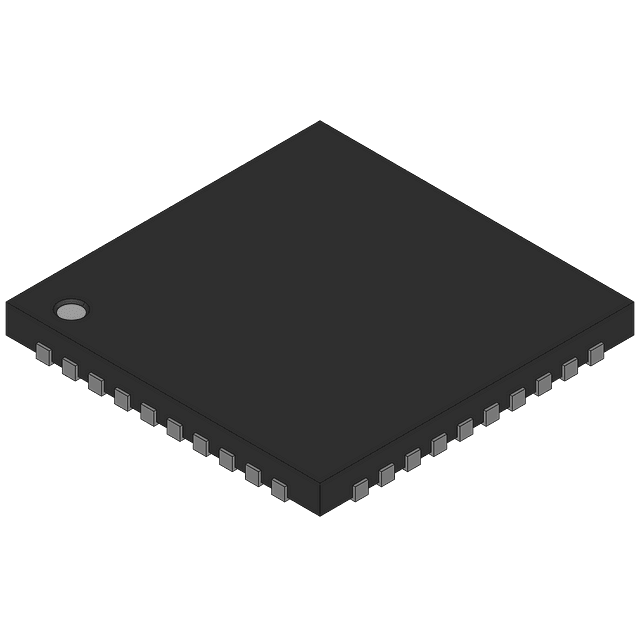

32-bit ARM Cortex-M0+ microcontroller with 24MHz frequency, 32KB FLASH memory, and 4KB RAM. Features 34 GPIO pins, 4 timers/counters, and integrated peripherals including PWM, I2C, DMA, and LCD. Operates from 1.71V to 5.5V supply voltage, with I2C, SPI, and UART interfaces. Packaged in a 6mm x 6mm x 0.55mm QFN with gold contact plating, this RoHS compliant CMOS component is suitable for operation between -40°C and 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Cypress CY8C4125LQI-483 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Cypress CY8C4125LQI-483 technical specifications.
| Package/Case | QFN |
| Contact Plating | Gold |
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Frequency | 24MHz |
| Height | 0.55mm |
| Interface | I2C, SPI, UART |
| Lead Free | Lead Free |
| Length | 6mm |
| Max Frequency | 24MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 32KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.71V |
| Number of GPIO | 34 |
| Number of I/Os | 34 |
| Number of Timers/Counters | 4 |
| Operating Supply Voltage | 1.8V |
| Package Quantity | 490 |
| Packaging | Tray |
| Peripherals | PWM, I2C, DMA, LCD |
| Radiation Hardening | No |
| RAM Size | 4KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PSoC4100 |
| Technology | CMOS |
| Watchdog Timer | Yes |
| Weight | 0.004138oz |
| Width | 6mm |
| RoHS | Compliant |
