CMOS LED driver IC featuring an M8C core architecture and 8-bit data bus width. This surface mount component offers I2C, SPI, UART, USART, and USB interfaces, operating from a 3V to 5.25V supply. With 32KB of FLASH memory and 2KB of RAM, it supports a maximum frequency of 24MHz and has 44 I/Os. Packaged in a 48-pin SSOP, this RoHS compliant device operates across a -40°C to 85°C temperature range.
Frequency93kHz
PackageSSOP
Current14mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY8CLED16-48PVXI technical specifications.
General
| Package/Case | SSOP |
| Core Architecture | M8C |
| Data Bus Width | 8b |
| Frequency | 93kHz |
| Height | 2.6mm |
| Interface | I2C, SPI, UART, USART, USB |
| Length | 15.8mm |
| Max Frequency | 24MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.25V |
| Memory Size | 32KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Bits | 32 |
| Number of I/Os | 44 |
| Operating Supply Current | 14mA |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| RAM Size | 2KB |
| RoHS Compliant | Yes |
| Series | EZ-Color™ CY8CLED |
| Supply Current | 14mA |
| Weight | 0.021175oz |
| Width | 7.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Cypress CY8CLED16-48PVXI Datasheet
Download the complete datasheet for Cypress CY8CLED16-48PVXI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

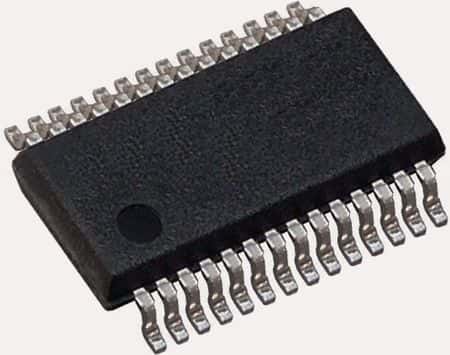

Product Images
