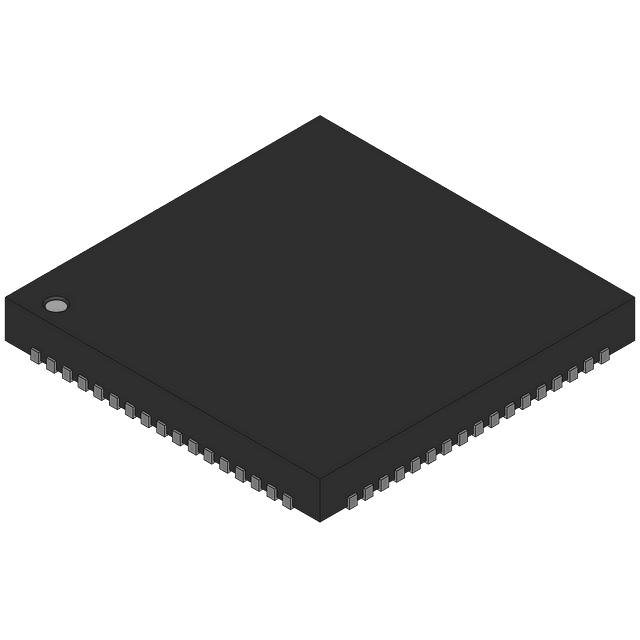

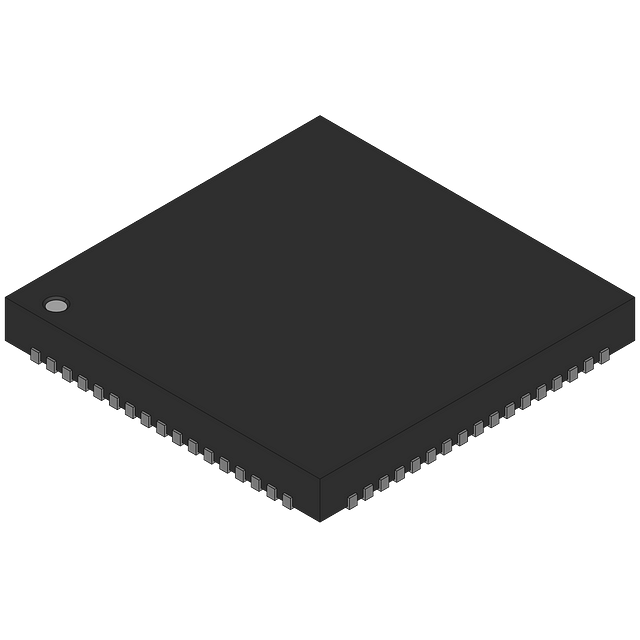

CMOS microprocessor circuit, QFN-68 package with gold contact plating, operating at 2.4GHz with a 1Mbps data rate. Features I2C and SPI interfaces, 2KB memory, and a 1dBm output power. Designed for surface mount applications, this lead-free component offers a 1.9V to 3.6V supply voltage range and a low max supply current of 40uA. Operates between 0°C and 70°C with a sensitivity of -87dBm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Cypress CYRF89435-68LTXC datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | QFN |
| Contact Plating | Gold |
| Data Rate | 1Mbps |
| Frequency | 2.4GHz |
| Interface | I2C, SPI |
| Lead Free | Lead Free |
| Max Frequency | 2.4GHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Current | 40uA |
| Max Supply Voltage | 3.6V |
| Memory Size | 2KB |
| Min Supply Voltage | 1.9V |
| Mount | Surface Mount |
| Number of Receivers | 13 |
| Number of Transmitters | 13 |
| Output Power (dBm) | 1dBm |
| Package Quantity | 260 |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sensitivity | -87dBm |
| Series | PRoC |
| Weight | 0.004138oz |
| RoHS | Compliant |
