4Kb Serial FRAM memory with SPI interface, offering 20ns maximum access time and 20MHz frequency. This non-volatile RAM features an 8-bit data bus width and 512x8 organization. Designed for surface mounting in an 8-pin SOIC package, it operates from a 4.5V to 5.5V supply range, with a nominal 5V. Suitable for automotive applications, it functions across -40°C to 85°C and is RoHS compliant.
Frequency20MHz
PackageSOIC
Current4mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress FM25040B-GTR technical specifications.
General
| Access Time-Max | 20ns |
| Package/Case | SOIC |
| Data Bus Width | 8b |
| Density | 4Kb |
| Frequency | 20MHz |
| Interface | SPI, Serial |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 4Kb |
| Memory Type | Non-Volatile, , FRAM, RAM |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Operating Supply Voltage | 5V |
| Organization | 512X8 |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | F-RAM™ |
| Supply Current | 4mA |
| Supply Voltage-Nom | 5.5V |
| Word Size | 8b |
Compliance
| RoHS | Compliant |
Datasheet
Cypress FM25040B-GTR Datasheet
Download the complete datasheet for Cypress FM25040B-GTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

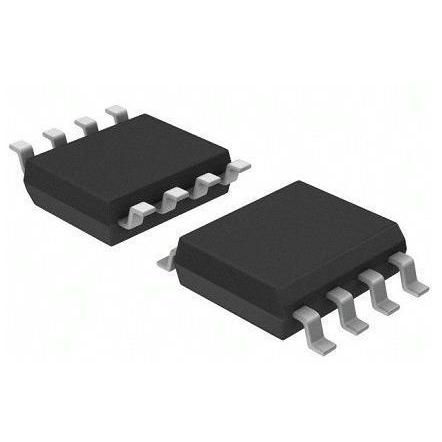

Product Images
