16Kb serial FRAM memory with SPI interface, offering 20ns access time and 20MHz frequency. This non-volatile RAM features an 8-bit data bus width and 2KX8 organization. Designed for automotive applications, it operates from 2.7V to 3.6V, with a nominal supply voltage of 3.3V. The component is surface mountable in an 8-pin SOIC package, supplied on tape and reel, and is lead-free and RoHS compliant.
Frequency20MHz
PackageSOIC
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress FM25L16B-GTR technical specifications.
General
| Access Time-Max | 20ns |
| Package/Case | SOIC |
| Data Bus Width | 8b |
| Density | 16Kb |
| Frequency | 20MHz |
| Interface | SPI, Serial |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 16Kb |
| Memory Type | Non-Volatile, , FRAM, RAM |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Operating Supply Voltage | 3.3V |
| Organization | 2KX8 |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | F-RAM™ |
| Supply Current | 3mA |
| Supply Voltage-Nom | 3.6V |
| Word Size | 8b |
Compliance
| RoHS | Compliant |
Datasheet
Cypress FM25L16B-GTR Datasheet
Download the complete datasheet for Cypress FM25L16B-GTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

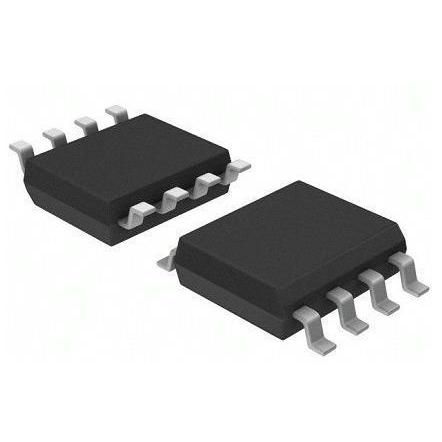

Product Images
