1Mbit Serial SPI FRAM memory, featuring 18ns access time and 128K x 8 organization. Operates from 2V to 3.6V with a nominal 3.3V supply. This surface mount SOIC package is RoHS compliant and lead-free, suitable for operation between -40°C and 85°C.
PackageSOIC
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress FM25V10-G technical specifications.
General
| Access Time-Max | 18ns |
| Package/Case | SOIC |
| Density | 1Mb |
| Interface | SPI, Serial |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Memory Size | 1Mb |
| Memory Type | RAM, , FRAM |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Operating Supply Voltage | 3.3V |
| Organization | 128KX8 |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | F-RAM™ |
| Supply Current | 3mA |
| Supply Voltage-Nom | 3.6V |
| Weight | 0.019048oz |
| Word Size | 8b |
Compliance
| RoHS | Compliant |
Datasheet
Cypress FM25V10-G Datasheet
Download the complete datasheet for Cypress FM25V10-G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

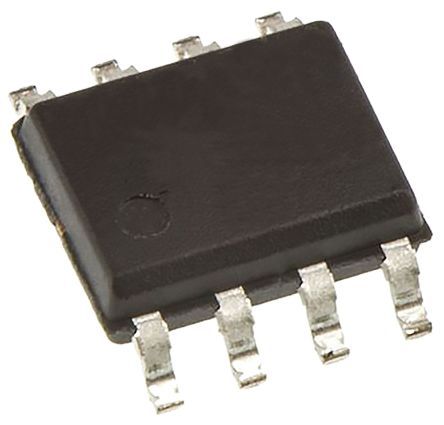

Product Images
