Technical Specifications
Cypress FM3164-G technical specifications.
General
| Package/Case | SOIC |
| Height | 0.478mm |
| Interface | I2C, Serial |
| Length | 8.74mm |
| Max Operating Temperature | 85°C |
| Memory Size | 64Kb |
| Min Operating Temperature | -40°C |
| Max Supply Current | 1.5mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Elements | 4 |
| Number of Voltages Monitored | 1 |
| Number of Words | 8000 |
| Overvoltage Threshold | 4.4V |
| Package Quantity | 56 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Supply Current | 1.5mA |
| Undervoltage Threshold | 2.6V |
| Watchdog Timer | Yes |
| Width | 3.987mm |
Compliance
| RoHS | Compliant |
Datasheet
Cypress FM3164-G Datasheet
Download the complete datasheet for Cypress FM3164-G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

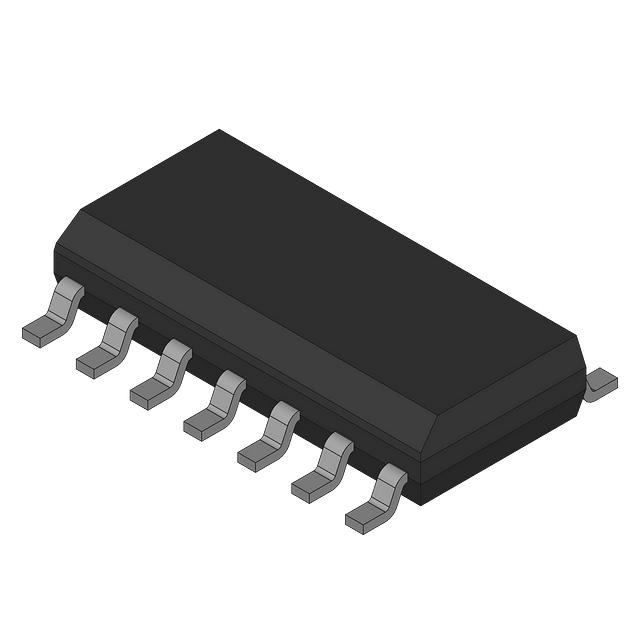

Product Images
