STK14CA8-NF35

Datasheet

1Mb SRAM, 8b Parallel Interface, SOIC-32, 0-70°C, 2.7-3.6V

Cypress

STK14CA8-NF35

Name: STK14CA8-NF35 Cypress
Brand: Cypress
SKU: STK14CA8-NF35

1Mb SRAM, 8b Parallel Interface, SOIC-32, 0-70°C, 2.7-3.6V

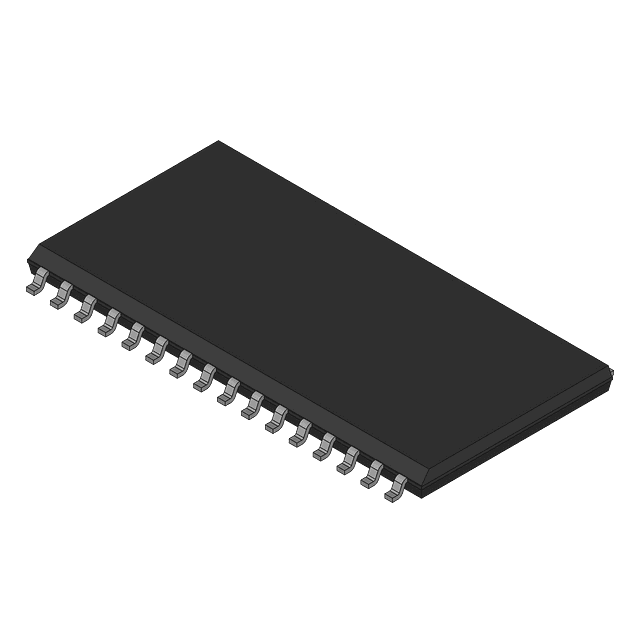

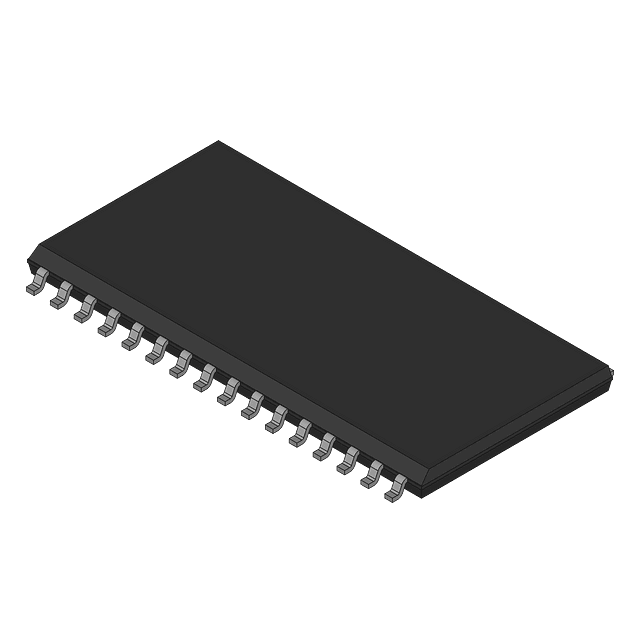

This Cypress SRAM is a non-volatile memory device with a memory size of 1Mb and a data bus width of 8 bits. It features a parallel interface and operates over a temperature range of 0 to 70°C. The device is packaged in a SOIC-32 package and is compatible with lead-free assembly processes. The SRAM has a maximum supply voltage of 3.6V and a minimum supply voltage of 2.7V.

PackageSOIC

MountingSurface Mount

Quick Jump:

Chat with Datasheet

Technical Specifications

Cypress STK14CA8-NF35 technical specifications.

General

Access Time	35ns
Access Time-Max	35ns
Package/Case	SOIC
Data Bus Width	8b
Density	1Mb
Interface	Parallel
Lead Free	Lead Free
Max Operating Temperature	70°C
Max Supply Voltage	3.6V
Memory Size	1Mb
Memory Type	Non-Volatile, , NVSRAM
Min Operating Temperature	0°C
Min Supply Voltage	2.7V
Mount	Surface Mount
Operating Supply Voltage	3.3V
Organization	128KX8
Package Quantity	22
Packaging	Rail/Tube
RoHS Compliant	Yes
Supply Voltage-Nom	3V
Temperature Grade	COMMERCIAL
