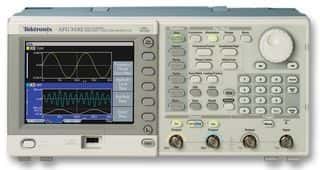

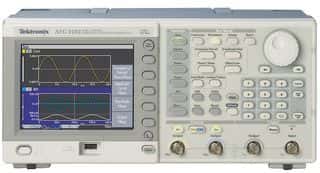

The AFG3021B is a single-channel signal generator with a bandwidth of 34MHz and a sampling rate of 250MS/s. It has an input impedance of 10kΩ and a resolution of 14 bits. The device is designed for use in a USB interface and has a maximum operating temperature of 50°C and a minimum operating temperature of 0°C. It weighs 4.5kg and measures 156.3mm in height, 168mm in length, and 329.6mm in width.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Danaher AFG3021B datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Bandwidth | 34MHz |
| Frequency | 25MHz |
| Height | 156.3mm |
| Input Impedance | 10kR |
| Interface | USB |
| Length | 168mm |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | 0°C |
| Number of Channels | 1 |
| Resolution | 14b |
| Sampling Rate | 250MS/s |
| Series | AFG3000 |
| Weight | 4.5kg |
| Width | 329.6mm |
| Wire/Cable Type | Power Cord |
| RoHS | Not Compliant |
