The AFG3101 is a 2-channel signal generator with a bandwidth of 100MHz and a sampling rate of 1GS/s. It features a USB interface and a memory size of 128000B. The device operates within a temperature range of 0°C to 50°C and measures 329.6mm in width, 168mm in length, and 156.3mm in height, with a weight of 10lb. It is part of the AFG3000 series and is used in signal and function generators.
Frequency25MHz
Package120
MountingExternal
Quick Jump:
Technical Specifications
Danaher AFG3101 technical specifications.
General
| Bandwidth | 100MHz |
| Package/Case | 120 |
| Frequency | 25MHz |
| Height | 156.3mm |
| Input Impedance | 10kR |
| Interface | USB |
| Length | 168mm |
| Max Operating Temperature | 50°C |
| Memory Size | 128000B |
| Min Operating Temperature | 0°C |
| Mount | External |
| Number of Channels | 2 |
| Reach SVHC Compliant | Unknown |
| Sampling Rate | 1GS/s |
| Series | AFG3000 |
| Weight | 10lb |
| Width | 329.6mm |
| Wire/Cable Type | Power Cord |
Compliance
| RoHS | Not Compliant |
Datasheet
Danaher AFG3101 Datasheet
Download the complete datasheet for Danaher AFG3101 to view detailed technical specifications.
No datasheet is available for this part.

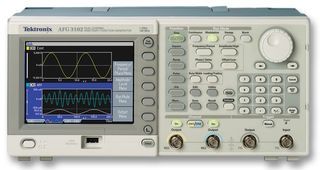

Product Images
