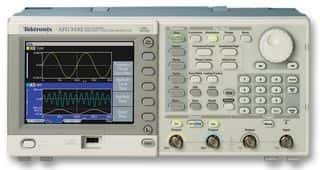

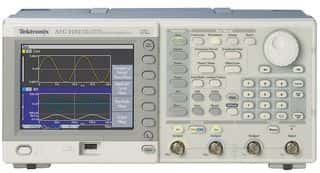

The AFG3102 is a 100MHz arbitrary waveform generator with 2 channels and a USB interface. It has a memory size of 128000B and an input impedance of 10kR. The device operates within a temperature range of 0°C to 50°C and has a weight of 10lb. It measures 168mm in length, 329.6mm in width, and 156.3mm in height.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Danaher AFG3102 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Bandwidth | 100MHz |
| Package/Case | 100 |
| Frequency | 100MHz |
| Height | 156.3mm |
| Input Impedance | 10kR |
| Interface | USB |
| Length | 168mm |
| Max Operating Temperature | 50°C |
| Memory Size | 128000B |
| Min Operating Temperature | 0°C |
| Number of Channels | 2 |
| Reach SVHC Compliant | Unknown |
| Sampling Rate | 1GS/s |
| Weight | 10lb |
| Width | 329.6mm |
| Wire/Cable Type | Power Cord |
| RoHS | Not Compliant |
