400A AC/DC current clamp for electrical measurements, featuring a 3kHz bandwidth and 3.5% accuracy. This clamp multimeter accessory operates within a temperature range of -10°C to 50°C and supports up to 600V AC. It utilizes a 9V battery and offers a voltage output type, with dimensions of 209mm (width) x 78.5mm (length) x 47.5mm (height).
Frequency3kHz
Package600
Current Rating400A
MountingClamp
Quick Jump:
Technical Specifications
Danaher I410 technical specifications.
General
| Accuracy | 3.5% |
| Bandwidth | 3kHz |
| Battery Type | 9V |
| Package/Case | 600 |
| Current Rating | 400A |
| Frequency | 3kHz |
| Height | 47.5mm |
| Length | 78.5mm |
| Max DC Current | 400A |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | -10°C |
| Mount | Clamp |
| Output Type | Voltage |
| Package Quantity | 1 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Type | Electrical |
| Voltage Rating (AC) | 600V |
| Width | 209mm |
Compliance
| RoHS | Compliant |
Datasheet
Danaher I410 Datasheet
Download the complete datasheet for Danaher I410 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

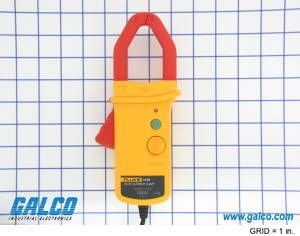

Product Images
