Danaher
MSO2014
TEKTRONIX MSO2014 Oscilloscope, 4 Analogue, 16 Digital, 100 MHz, 1 GSPS, 1 Mpts, 3.5 ns
Package100
Quick Jump:
Technical Specifications
Danaher MSO2014 technical specifications.
General
Bandwidth
100MHz
Package/Case
100
Display Type
LCD
Height
180mm
Input Capacitance
11.5pF
Input Impedance
1MR
Interface
I2C, SPI, RS-232, USB, CAN, Ethernet, RS-422, RS-485, UART, LIN
Length
377mm
Max Operating Temperature
50°C
Min Operating Temperature
0°C
Max Supply Voltage
240V
Min Supply Voltage
100V
Number of Channels
4
Number of Inputs
4
Reach SVHC Compliant
Unknown
Sampling Rate
1GS/s
Series
DPO2000, MSO2000
Weight
8lb
Width
377mm
Wire/Cable Type
Power Cord
Compliance
RoHS
Compliant
Datasheet
Danaher MSO2014 Datasheet
Download the complete datasheet for Danaher MSO2014 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

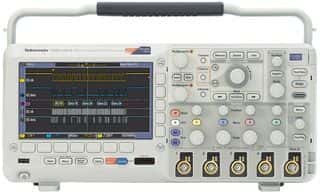

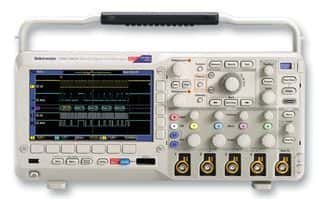

Product Images
