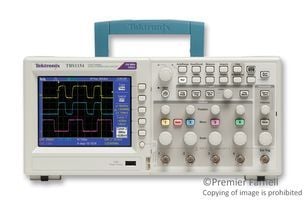

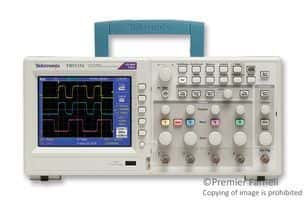

The TBS1104 is a 4-channel digital oscilloscope with a bandwidth of 100MHz and a sampling rate of 1GS/s. It operates over a temperature range of 0°C to 50°C and is powered by a nominal input voltage of 300V. The oscilloscope is packaged in a bulk format and measures 158mm in height, 124.2mm in length, and 326.3mm in width, weighing 4.4lb. It features a USB interface and an LCD display.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Danaher TBS1104 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Bandwidth | 100MHz |
| Package/Case | 100 |
| Display Type | LCD |
| Height | 158mm |
| Interface | USB |
| Length | 124.2mm |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | 0°C |
| Nominal Input Voltage | 300V |
| Number of Channels | 4 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Sampling Rate | 1GS/s |
| Series | 4 CH |
| Weight | 4.4lb |
| Width | 326.3mm |
| RoHS | Compliant |
