General purpose rectifier diode featuring 1A average rectified current and 50V repetitive reverse voltage. This silicon diode offers a maximum forward surge current of 30A and a low reverse current of 5µA. Encased in a DO-41 plastic package with tin contact plating, it operates within a temperature range of -65°C to 150°C. The component is RoHS compliant and designed for through-hole termination.
PackageDO-41
Capacitance15pF
Current Rating1A
PolarityStandard
Quick Jump:
Technical Specifications
Diodes 1N4001-T technical specifications.
General
| Average Rectified Current | 1A |
| Capacitance | 15pF |
| Package/Case | DO-41 |
| Contact Plating | Tin |
| Current Rating | 1A |
| Diameter | 2.72mm |
| Forward Current | 1A |
| Height | 2.71mm |
| Lead Free | Lead Free |
| Length | 4.7mm |
| Max Forward Surge Current (Ifsm) | 30A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 50V |
| Max Reverse Current | 5uA |
| Max Reverse Voltage (DC) | 50V |
| Max Surge Current | 30A |
| Output Current | 1A |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 30A |
| Polarity | Standard |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage (DC) | 50V |
| RoHS Compliant | Yes |
| Termination | Through Hole |
| DC Rated Voltage | 50V |
| Weight | 0.010582oz |
| Width | 2.71mm |
Compliance
| RoHS | Compliant |
Datasheet
Diodes 1N4001-T Datasheet
Download the complete datasheet for Diodes 1N4001-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

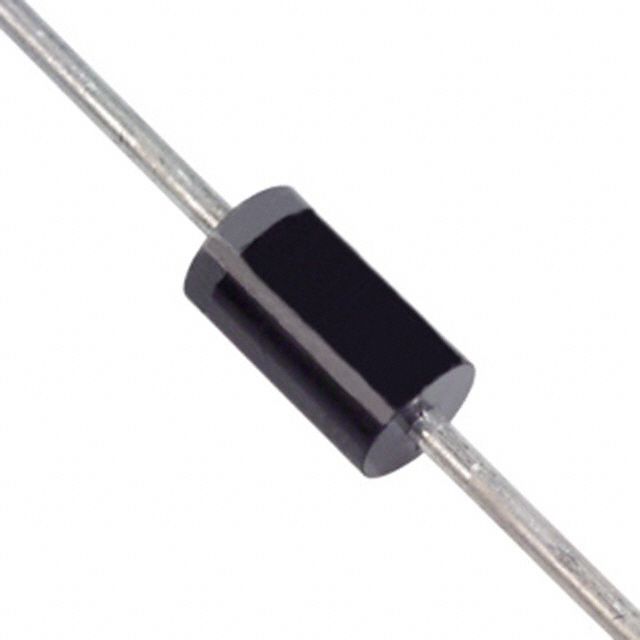

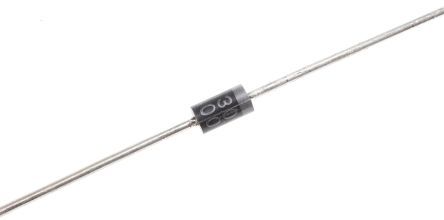

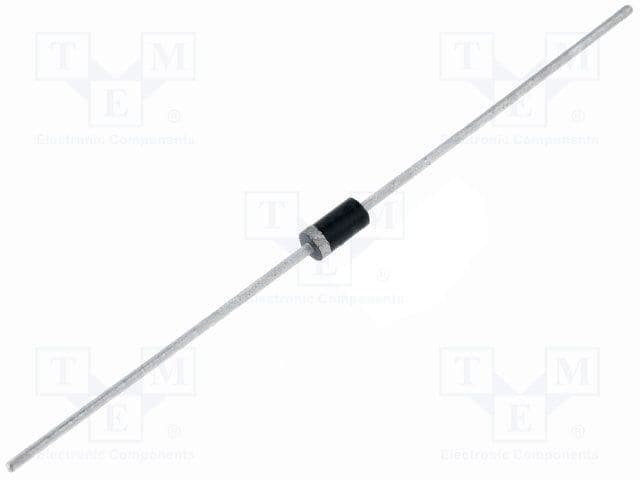

Product Images
