General purpose rectifier diode with 1A average rectified current and 400V repetitive peak reverse voltage. Features a low 5µA maximum reverse current and 2µs reverse recovery time. Encased in a DO-41 plastic package for through-hole mounting, this silicon diode operates from -65°C to 175°C and is RoHS compliant. Maximum surge current capability is 30A.
PackageDO-41
Capacitance8pF
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Diodes 1N4004G-T technical specifications.
General
| Average Rectified Current | 1A |
| Capacitance | 8pF |
| Package/Case | DO-41 |
| Current Rating | 1A |
| Forward Current | 1A |
| Height | 2.72mm |
| Lead Free | Lead Free |
| Length | 5.21mm |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 400V |
| Max Reverse Current | 5uA |
| Max Reverse Voltage (DC) | 400V |
| Max Surge Current | 30A |
| Mount | Through Hole |
| Output Current | 1A |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 30A |
| Polarity | Standard |
| Radiation Hardening | No |
| Reverse Recovery Time | 2us |
| Reverse Voltage (DC) | 400V |
| RoHS Compliant | Yes |
| DC Rated Voltage | 400V |
| Weight | 0.010582oz |
| Width | 2.72mm |
Compliance
| RoHS | Compliant |
Datasheet
Diodes 1N4004G-T Datasheet
Download the complete datasheet for Diodes 1N4004G-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

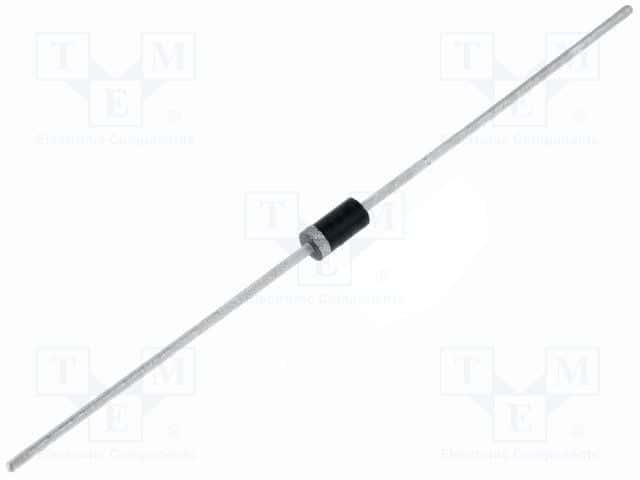

Product Images
