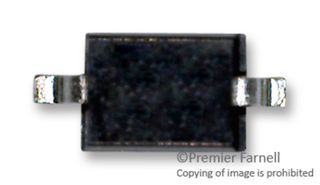

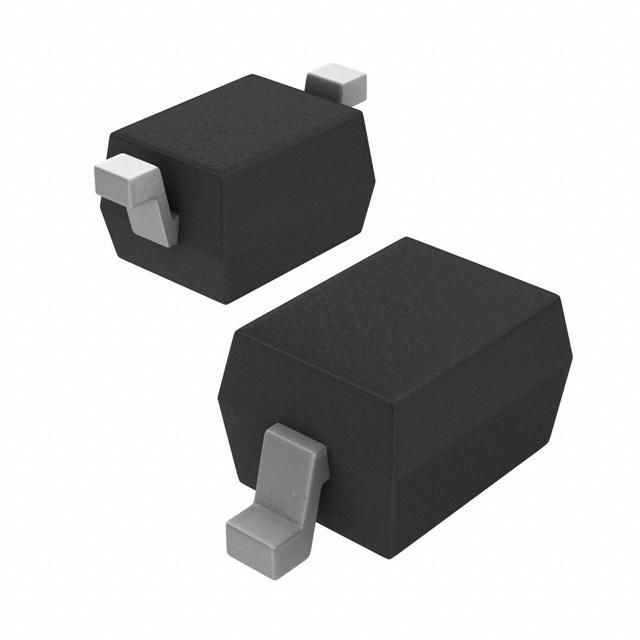

The 1N4148WSQ-7-F is a general purpose rectifier diode with a maximum reverse voltage of 75V and average rectified current of 150mA. It is packaged in a SOD-323-2 surface mount package and is RoHS compliant. The diode has a maximum operating temperature range of -65°C to 150°C and a maximum power dissipation of 200mW. It is also lead free and compliant with AEC-Q101.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Diodes 1N4148WSQ-7-F datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Diodes 1N4148WSQ-7-F technical specifications.
| Average Rectified Current | 150mA |
| Package/Case | SOD-323-2 |
| Forward Current | 150mA |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 200mW |
| Max Reverse Current | 25nA |
| Max Reverse Voltage (DC) | 75V |
| Max Surge Current | 2A |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Reverse Recovery Time | 4ns |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q101 |
| Weight | 0.000173oz |
| RoHS | Compliant |
