General purpose rectifier diode featuring 80V repetitive reverse voltage (Vrrm) and 250mA average rectified current. Surface mount silicon diode with a 4ns reverse recovery time and 4A peak non-repetitive surge current. Operates across a wide temperature range from -65°C to 150°C, with a low 3.5pF capacitance. Packaged in tape and reel, this lead-free and RoHS compliant component offers 200mW power dissipation.
Capacitance3.5pF
Current Rating500mA
MountingSurface Mount
PolarityStandard
Quick Jump:
Technical Specifications
Diodes 1N4448HWS-7-F technical specifications.
General
| Average Rectified Current | 250mA |
| Capacitance | 3.5pF |
| Current Rating | 500mA |
| Forward Current | 250mA |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 1.8mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 80V |
| Max Reverse Current | 100nA |
| Max Reverse Voltage (DC) | 80V |
| Max Surge Current | 4A |
| Mount | Surface Mount |
| Output Current | 250mA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 4A |
| Polarity | Standard |
| Power Dissipation | 200mW |
| Radiation Hardening | No |
| Reverse Recovery Time | 4ns |
| Reverse Recovery Time-Max | 4ns |
| RoHS Compliant | Yes |
| DC Rated Voltage | 80V |
| Weight | 0.000173oz |
| Width | 1.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Diodes 1N4448HWS-7-F Datasheet
Download the complete datasheet for Diodes 1N4448HWS-7-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

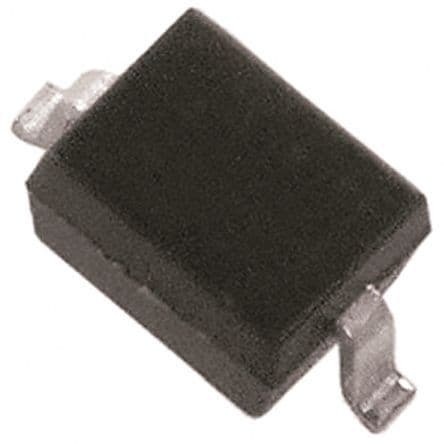

Product Images
