General purpose rectifier diode featuring a 75V repetitive reverse voltage and 250mA forward current. This silicon component offers a fast 4ns reverse recovery time and a maximum surge current of 4A. Designed for surface mount applications, it operates within a temperature range of -65°C to 150°C and has a low capacitance of 4pF. The diode is housed in a compact plastic package with tin-matte plating and is RoHS compliant.
Capacitance4pF
Current Rating250mA
MountingSurface Mount
PolarityStandard
Quick Jump:
Technical Specifications
Diodes 1N4448WS-7-F technical specifications.
General
Average Rectified Current
250mA
Capacitance
4pF
Contact Plating
Tin, Matte
Current Rating
250mA
Forward Current
250mA
Height
1mm
Lead Free
Lead Free
Length
1.8mm
Max Forward Surge Current (Ifsm)
4A
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
75V
Max Reverse Current
2.5uA
Max Reverse Voltage (DC)
75V
Max Surge Current
4A
Mount
Surface Mount
Output Current
250mA
Package Quantity
3000
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
4A
Polarity
Standard
Power Dissipation
200mW
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Recovery Time
4ns
Reverse Recovery Time-Max
4ns
Reverse Voltage
75V
RoHS Compliant
Yes
DC Rated Voltage
75V
Weight
0.000173oz
Width
1.4mm
Compliance
RoHS
Compliant
Datasheet
Diodes 1N4448WS-7-F Datasheet
Download the complete datasheet for Diodes 1N4448WS-7-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

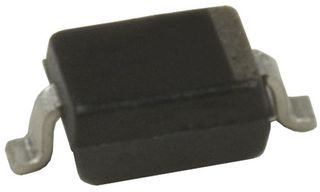

Product Images
