Silicon Zener Diode with a 5.1V Zener Voltage and 5% tolerance. This unidirectional diode features a 1W power dissipation and a maximum reverse leakage current of 10µA. Housed in a DO-41 glass package, it supports through-hole mounting and operates within a temperature range of -65°C to 175°C. RoHS compliant and lead-free, it is supplied on tape and reel.
PackageDO-41
Voltage Rating5.1V
MountingThrough Hole
Power1W
Quick Jump:
Technical Specifications
Diodes 1N4733A-T technical specifications.
General
| Package/Case | DO-41 |
| Height | 2.71mm |
| Impedance | 7R |
| Lead Free | Lead Free |
| Length | 4.7mm |
| Material | Glass |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 1W |
| Max Reverse Current | 10uA |
| Max Reverse Leakage Current | 10uA |
| Mount | Through Hole |
| Output Current | 510mA |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Power Dissipation | 1W |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Tolerance | 5% |
| DC Rated Voltage | 5.1V |
| Voltage Tolerance | 5% |
| Weight | 0.010582oz |
| Width | 2.71mm |
| Working Voltage | 5.1V |
| Zener Voltage | 5.1V |
Compliance
| RoHS | Compliant |
Datasheet
Diodes 1N4733A-T Datasheet
Download the complete datasheet for Diodes 1N4733A-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

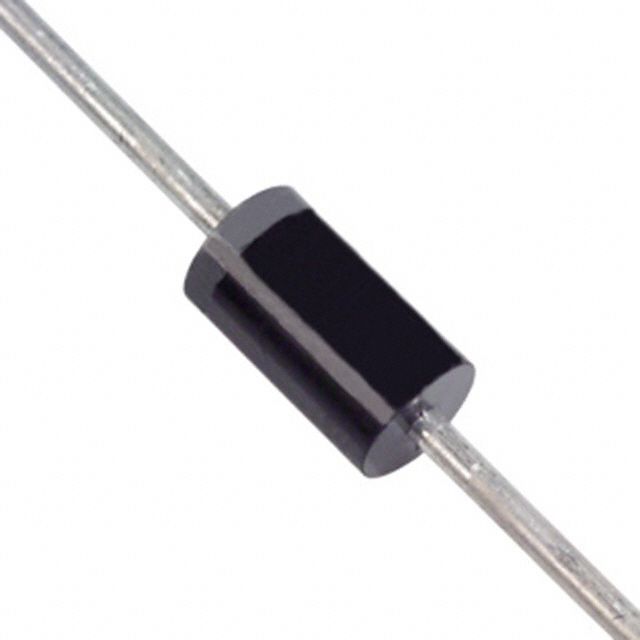

Product Images
