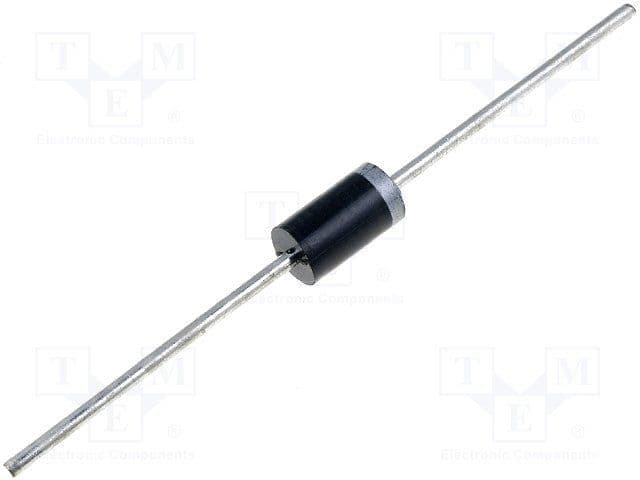

This standard recovery rectifier provides a 400 V peak repetitive reverse voltage and 3.0 A average rectified output current. It is housed in a DO-201AD molded plastic package with tin-plated axial leads and a cathode polarity band. The device is rated for 200 A non-repetitive peak forward surge current and 1.0 V forward voltage at 3.0 A. Operating and storage junction temperature range is -65°C to +150°C. The construction uses a diffused junction and is specified as lead-free finish and RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Diodes 1N5404 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DO-201AD |
| Forward Current | 3A |
| Max Forward Surge Current (Ifsm) | 200A |
| Max Operating Temperature | 150°C |
| Max Repetitive Reverse Voltage (Vrrm) | 400V |
| Packaging | Cut Tape |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| RoHS | Compliant |
