Diodes
AH173-WL-7-A
MAGNETIC FIELD SENSOR-HALL EFFECT, -6-6mT, 400mV, RECTANGULAR, SURFACE MOUNT, ROHS COMPLIANT, SC-59, 3 PIN
PackageSC
Current3.5mA
Current Rating3.5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes AH173-WL-7-A technical specifications.
General
Package/Case
SC
Current Rating
3.5mA
Height
1.3mm
Lead Free
Lead Free
Length
3.1mm
Logic Function
Latch
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
25mA
Max Supply Current
6mA
Max Supply Voltage
20V
Min Supply Voltage
3V
Mount
Surface Mount
Output Current
25mA
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Supply Current
3.5mA
Type
Hall Effect Latch
Width
1.7mm
Compliance
RoHS
Compliant
Datasheet
Diodes AH173-WL-7-A Datasheet
Download the complete datasheet for Diodes AH173-WL-7-A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

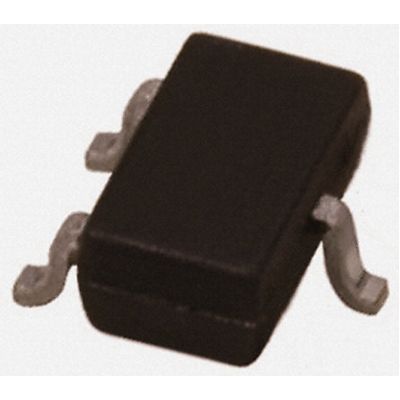

Product Images
