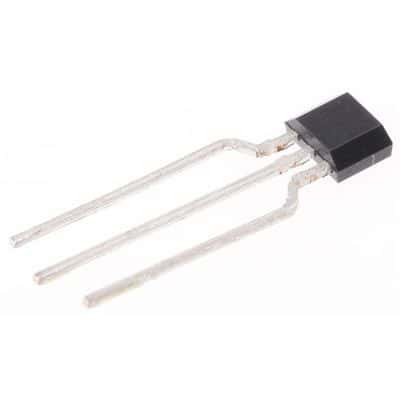

The AH1751-PG-A-A Hall Effect Latch from Diodes operates over a temperature range of -40°C to 125°C. It is available in a SIP-3 package with a lead-free tin plating and is compliant with RoHS and Reach SVHC. The device has a maximum operating supply voltage of 20V and a maximum output current of 100mA. It is designed for through-hole mounting and has a width of 1.6mm and a height of 3.2mm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Diodes AH1751-PG-A-A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SIP |
| Contact Plating | Tin |
| Height | 3.2mm |
| Lead Free | Lead Free |
| Length | 4.3mm |
| Logic Function | Latch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 100mA |
| Max Supply Current | 6mA |
| Max Supply Voltage | 20V |
| Min Supply Voltage | 3.5V |
| Mount | Through Hole |
| Operating Supply Current | 6mA |
| Output Current | 100mA |
| Package Quantity | 4000 |
| Packaging | Ammo Pack |
| Radiation Hardening | No |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Supply Current | 3.5mA |
| Type | Hall Effect Latch |
| Width | 1.6mm |
| RoHS | Compliant |
