Omnipolar Hall Effect Switch IC, operating from 2.5V to 5.5V with a typical 5V supply. Features a 3-pin SC-59 surface mount package with tin plating. Offers a low 8µA current rating and 1mA output current. Operates across a wide temperature range of -40°C to 85°C. RoHS compliant and supplied in tape and reel packaging.
PackageSC
Current24uA
Current Rating8uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes AH180-WG-7 technical specifications.
General
Package/Case
SC
Contact Plating
Tin
Current Rating
8uA
Height
1.3mm
Lead Free
Lead Free
Length
3.1mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
110uA
Max Supply Current
16uA
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Mount
Surface Mount
Operating Supply Voltage
5V
Output Current
1mA
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
24uA
Type
Hall Effect Switch, Omnipolar Switch
Width
1.7mm
Compliance
RoHS
Compliant
Datasheet
Diodes AH180-WG-7 Datasheet
Download the complete datasheet for Diodes AH180-WG-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

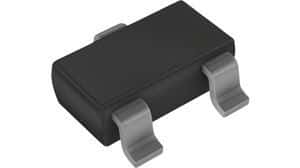

Product Images
