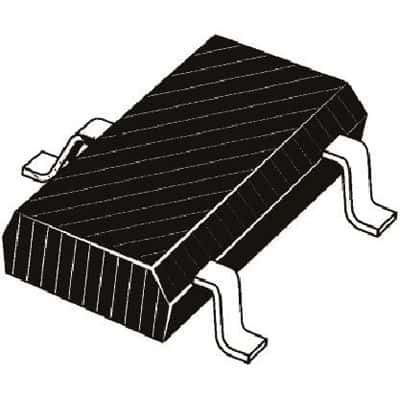

The AH1804-W-7 is a surface mount switch with a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. It has a maximum supply current of 12uA and an operating supply voltage of 3.3V. The switch is packaged in a SC-59 package and is compliant with RoHS regulations. It is also Reach SVHC compliant and lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Diodes AH1804-W-7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Diodes AH1804-W-7 technical specifications.
| Package/Case | SC |
| Contact Plating | Tin |
| Height | 1.3mm |
| Lead Free | Lead Free |
| Length | 3.1mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 12uA |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Operating Supply Voltage | 3.3V |
| Output Type | PUSH-PULL |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Type | Switch |
| Width | 1.7mm |
| RoHS | Compliant |
