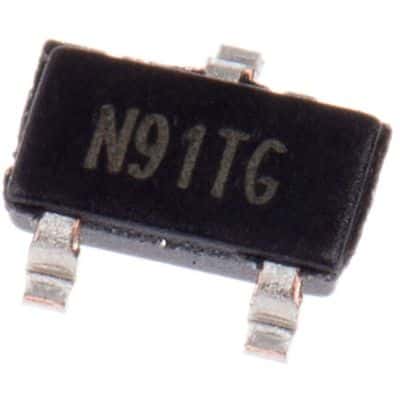

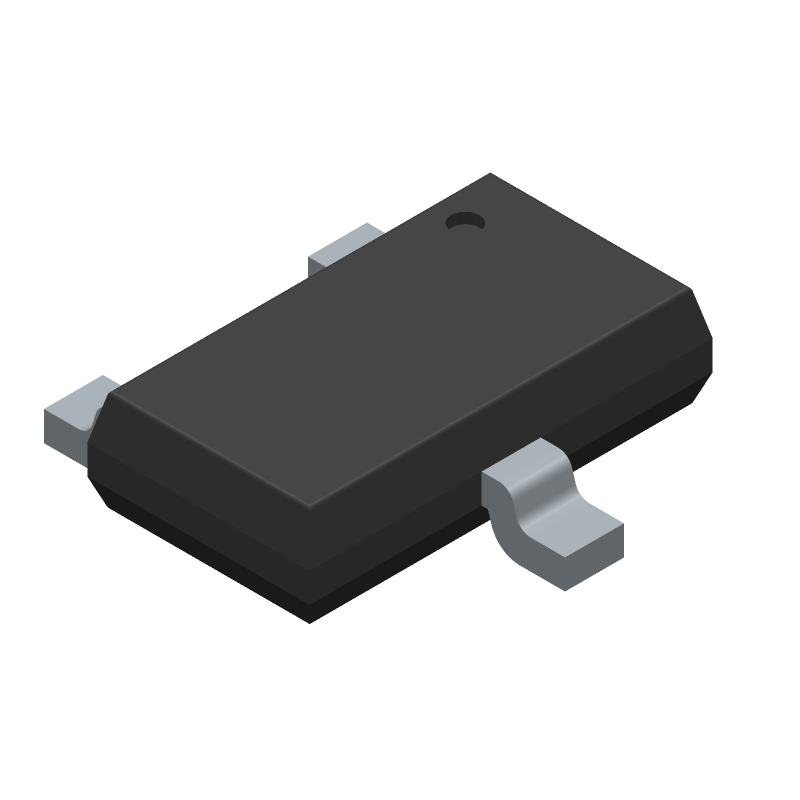

Omnipolar Hall Effect Switch, designed for surface mount applications in a TSOT-23 package. This component features a minimum magnetic flux density of 1mT and a maximum of 5mT, with an output voltage of 100mV. Operating within a supply voltage range of 2.5V to 5.5V, it draws a maximum supply current of 16µA. The device offers a maximum power dissipation of 230mW and operates across a temperature range of -40°C to 85°C. Its construction includes tin contact plating and it is RoHS and REACH SVHC compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Diodes AH180N-WSG-7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TSOT |
| Contact Plating | Tin |
| Height | 0.775mm |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 230mW |
| Max Supply Current | 16uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Operating Supply Current | 6mA |
| Operating Supply Voltage | 5V |
| Output Voltage | 100mV |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Series | AH180 |
| Supply Current | 6mA |
| Type | Hall Effect Switch, Switch, Omnipolar Switch |
| Width | 1.7mm |
| RoHS | Compliant |
