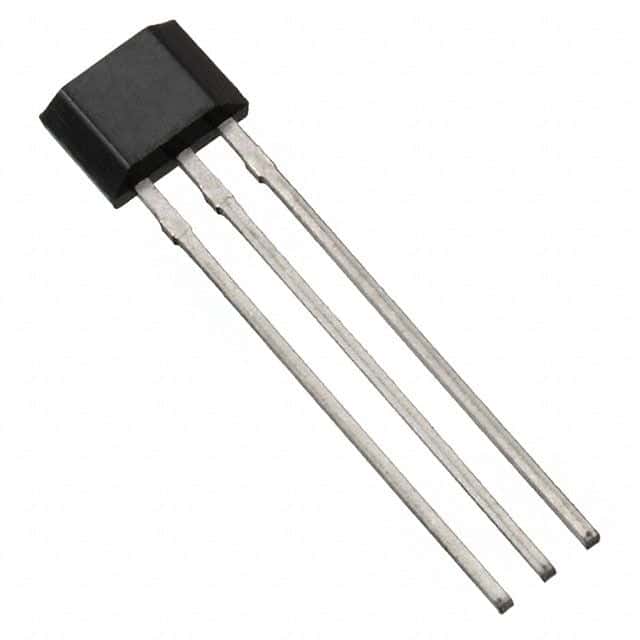

The AH182-PG-B Hall Effect Switch from Diodes is a through-hole mounted device with a SIP-3 package. It operates over a temperature range of -40°C to 85°C and is compliant with RoHS regulations. The switch has a maximum output current of 10mA and a maximum supply voltage of 5.5V, with a minimum supply voltage of 2.5V. The device is lead-free and features tin contact plating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Diodes AH182-PG-B datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SIP |
| Contact Plating | Tin |
| Height | 3.2mm |
| Lead Free | Lead Free |
| Length | 4.3mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 10mA |
| Max Supply Current | 10uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.5V |
| Mount | Through Hole |
| Output Current | 10mA |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Type | Hall Effect Switch |
| Width | 1.6mm |
| RoHS | Compliant |
