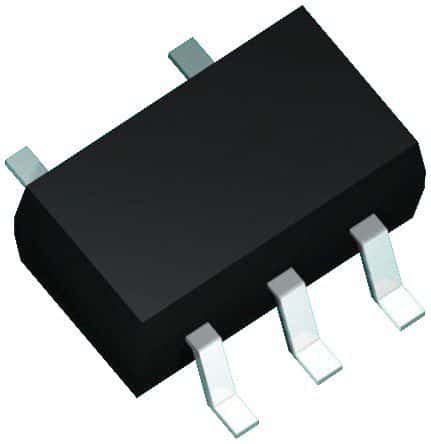

Hall Effect Sensor, 0.6mT Min, 5.5mT Max, 0.20-1.60V, CMOS, Plastic/epoxy, Rectangular, 6 Pin, Surface Mount, GREEN, SOT-553, 5 PIN
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Diodes AH1883-ZG-7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOT-553 |
| Height | 0.6mm |
| Lead Free | Lead Free |
| Length | 1.7mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 230mW |
| Max Supply Current | 12uA |
| Max Supply Voltage | 3.3V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Operating Supply Voltage | 2.5V |
| Output Current | 500mA |
| Output Type | PUSH-PULL |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 12A |
| Type | Hall Effect Switch |
| Width | 1.25mm |
| RoHS | Compliant |
