3.3V fixed output linear voltage regulator, delivering up to 4A output current. Features a low 260mV dropout voltage and a maximum input voltage of 16V. This positive output regulator is housed in a TO-263-5 surface mount package with tin, matte contact plating. Operating temperature range is 0°C to 125°C, with a maximum power dissipation of 4.4W.
PackageTO-263-5
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Diodes AP1184K5-33L-13 technical specifications.
General
Package/Case
TO-263-5
Contact Plating
Tin, Matte
Dropout Voltage
260mV
Height
4.85mm
Lead Free
Lead Free
Length
10.54mm
Max Input Voltage
16V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
4A
Min Output Voltage
3.3V
Max Power Dissipation
4.4W
Max Supply Current
70mA
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
4A
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
800
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
70dB
Quiescent Current
25mA
RoHS Compliant
Yes
Weight
0.056438oz
Width
9.65mm
Compliance
RoHS
Compliant
Datasheet
Diodes AP1184K5-33L-13 Datasheet
Download the complete datasheet for Diodes AP1184K5-33L-13 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

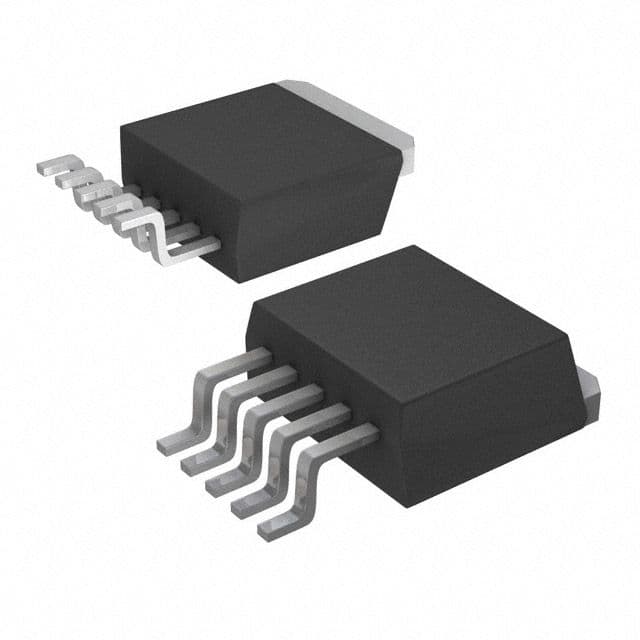

Product Images
