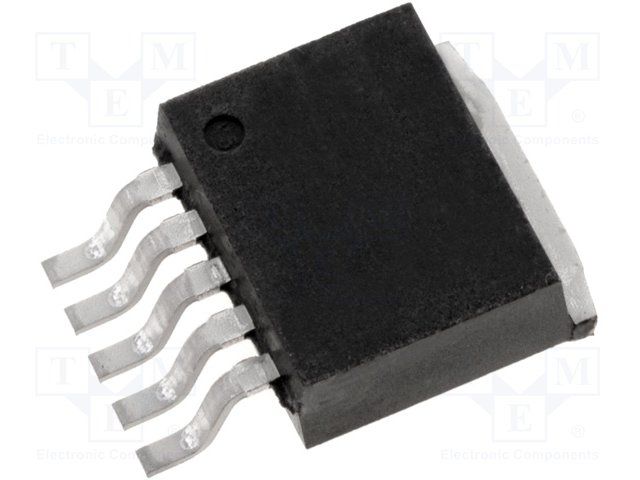

The AP1501A-12K5G-13 DC/DC controller is a 40V 5A fixed output voltage regulator in a TO-263-5 package. It operates over a temperature range of -20°C to 85°C and is RoHS compliant. The device has a high efficiency of 88% and a maximum input voltage of 40V. It is designed for surface mount applications and is available in a tape and reel packaging format with 800 units per package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Diodes AP1501A-12K5G-13 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Diodes AP1501A-12K5G-13 technical specifications.
| Package/Case | TO-263-5 |
| Contact Plating | Tin, Matte |
| Efficiency | 88% |
| Max Input Voltage | 40V |
| Min Input Voltage | 4.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Output Current | 5A |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Voltage | 40V |
| Output Current | 5A |
| Output Type | Fixed |
| Output Voltage | 12V |
| Package Quantity | 800 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | AP1501A |
| Synchronous Rectifier | No |
| Weight | 0.056438oz |
| RoHS | Compliant |
Download the complete datasheet for Diodes AP1501A-12K5G-13 to view detailed technical specifications.
