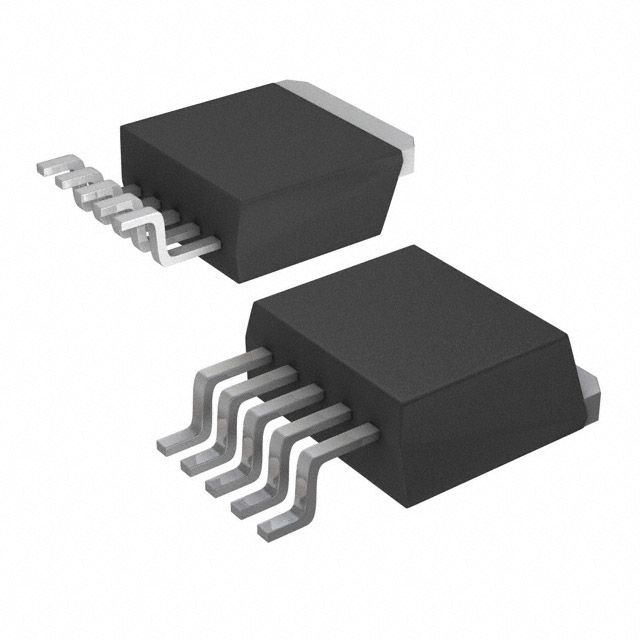

The AP1501A-33K5G-13 DC/DC controller from Diodes is a fixed output device with a maximum operating temperature of 85°C and a minimum operating temperature of -20°C. It has a maximum input voltage of 40V and a maximum output current of 5A. The device is packaged in a TO-263-5 case and is RoHS compliant. It is available in a tape and reel packaging with 800 units per package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Diodes AP1501A-33K5G-13 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Diodes AP1501A-33K5G-13 technical specifications.
| Package/Case | TO-263-5 |
| Contact Plating | Tin, Matte |
| Efficiency | 71% |
| Max Input Voltage | 40V |
| Min Input Voltage | 4.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Output Current | 5A |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Voltage | 40V |
| Output Current | 5A |
| Output Type | Fixed |
| Output Voltage | 3.3V |
| Package Quantity | 800 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | AP1501A |
| Synchronous Rectifier | No |
| Weight | 0.056438oz |
| RoHS | Compliant |
