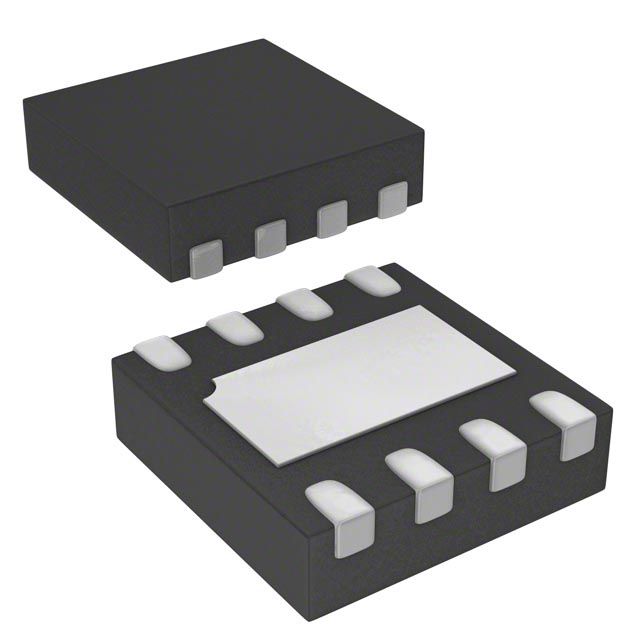

The AP2142AFGEG-7 is a dual high side switch from Diodes, packaged in a DFN-8 package. It operates over a temperature range of -40°C to 85°C and is compliant with RoHS and Reach SVHC. The device features fault protection against over temperature and reverse current, and is available in a tape and reel packaging format with 3000 units per package. It is suitable for surface mount applications and has a maximum output current of 500mA.
PackageDFN EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes AP2142AFGEG-7 technical specifications.
General
| Package/Case | DFN EP |
| Fault Protection | Over Temperature, Reverse Current |
| Interface | On/Off |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Outputs | 2 |
| Number of Switches | 2 |
| Output Configuration | High Side |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
