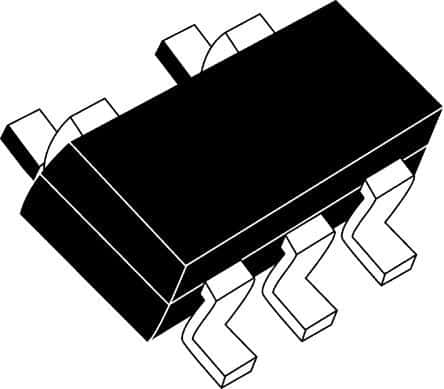

Telecom circuit, a single-function integrated circuit designed for telecommunications applications. Features a 2A maximum output current and a 6V operating voltage. Packaged in a 5-pin SOT-25 (PDSO5) surface-mount package with dimensions of 3.1mm length, 1.7mm width, and 1.3mm height. Operates within a temperature range of -40°C to 85°C, with a maximum power dissipation of 750mW. This component is lead-free, RoHS compliant, and REACH SVHC compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Diodes AP2280-1WG-7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Diodes AP2280-1WG-7 technical specifications.
| Package/Case | SOT-25 |
| Current | 2A |
| Height | 1.3mm |
| Interface | On/Off |
| Lead Free | Lead Free |
| Length | 3.1mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2A |
| Max Power Dissipation | 750mW |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Configuration | High Side |
| Output Current | 0A |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 750mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Voltage | 6V |
| Weight | 0.001058oz |
| Width | 1.7mm |
| RoHS | Compliant |
