Adjustable shunt voltage reference IC with a 1% tolerance, offering a precise output voltage range from 2.495V to 36V. This surface-mount component, housed in a SOT-23 package, supports a maximum input voltage of 36V and a cathode current of 500µA, with a maximum output current of 200mA. Operating within a temperature range of -20°C to 85°C, it is supplied on tape and reel for efficient manufacturing.
PackageSOT-23
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes AP431RL-7 technical specifications.
General
| Package/Case | SOT-23 |
| Cathode Current | 500uA |
| Height | 1mm |
| Length | 3.05mm |
| Max Input Voltage | 36V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Output Current | 200mA |
| Max Output Voltage | 36V |
| Min Output Voltage | 2.495V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Output Current | 200mA |
| Output Type | Adjustable |
| Output Voltage | 36V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reference Type | Shunt, Adjustable |
| RoHS Compliant | Yes |
| Series | AP431R |
| Tolerance | 1% |
| Weight | 0.000282oz |
| Width | 1.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Diodes AP431RL-7 Datasheet
Download the complete datasheet for Diodes AP431RL-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

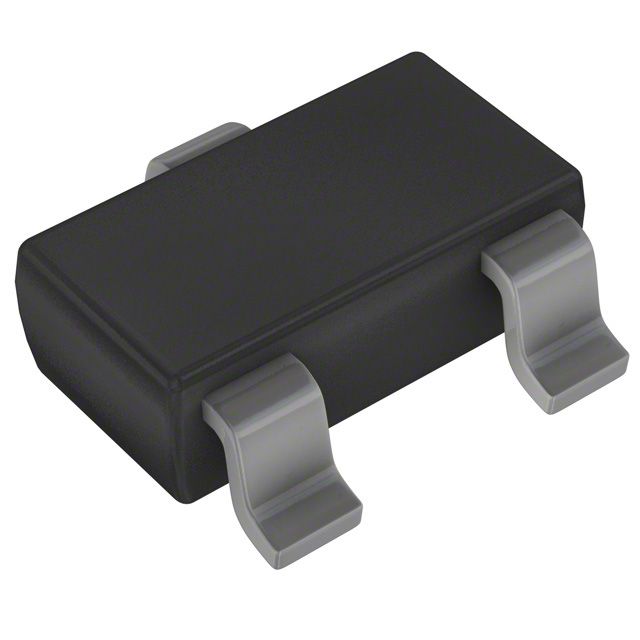

Product Images
