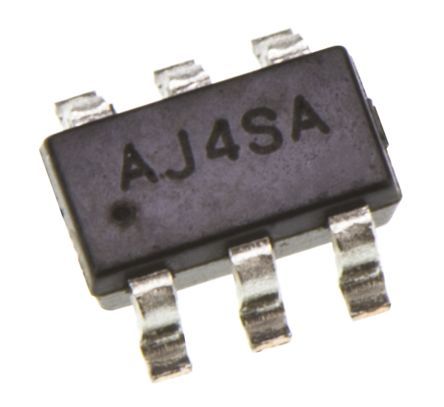

Surface mount DC/DC switching regulator with current-mode control, delivering up to 1.2A output current. Features a wide input voltage range of 4.75V to 24V and an adjustable output voltage from 810mV to 15V. Operates at a maximum switching frequency of 1.7MHz, achieving up to 90% efficiency. Packaged in a compact SOT-26 (PDSO6) case with dimensions of 3.1mm (L) x 1.7mm (W) x 1.3mm (H). Compliant with RoHS and REACH SVHC standards, and lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Diodes AP5100WG-7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Diodes AP5100WG-7 technical specifications.
| Package/Case | SOT-26 |
| Efficiency | 90% |
| Height | 1.3mm |
| Lead Free | Lead Free |
| Length | 3.1mm |
| Max Input Voltage | 24V |
| Min Input Voltage | 4.75V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Output Current | 1.2A |
| Max Output Voltage | 15V |
| Min Output Voltage | 810mV |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 1.2A |
| Output Type | Adjustable |
| Output Voltage | 15V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Switching Frequency-Max | 1.7MHz |
| Synchronous Rectifier | No |
| Width | 1.7mm |
| RoHS | Compliant |
