Technical Specifications

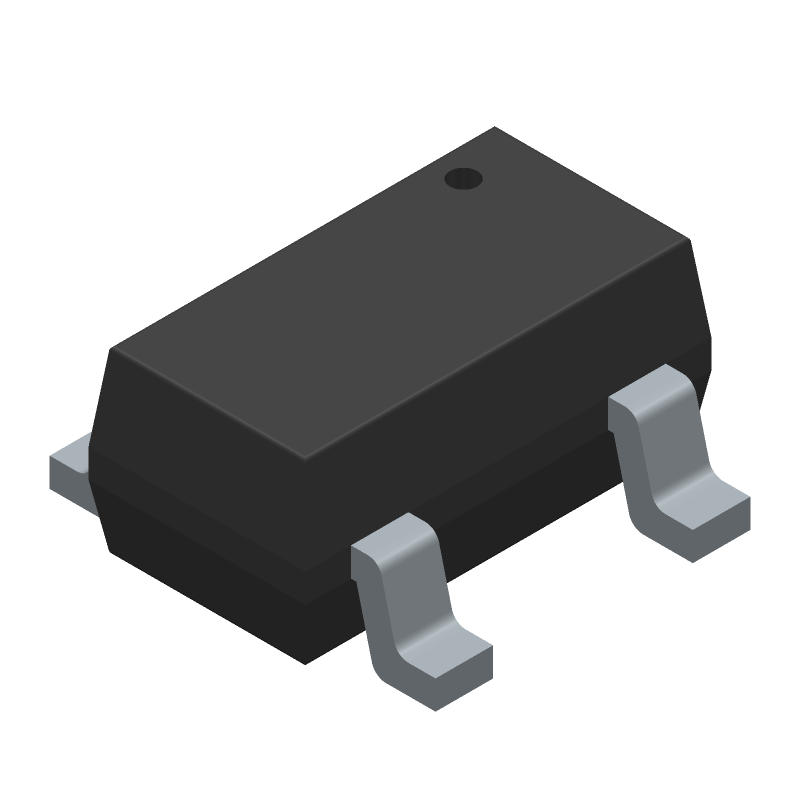

Diodes AP7383-36W5-7 technical specifications.
General
| Number of Terminals | 5 |
| Terminal Position | DUAL |
| JEDEC Package Code | R-PDSO-G5 |
| Width | 1.6 |
| Length | 3 |
| Number of Functions | 1 |
| Number of Outputs | 1 |
| Input Voltage-Max | 30 |
| Input Voltage-Min | 5.6 |
| Output Voltage1-Min | 3.564 |
| Output Voltage1-Max | 3.636 |
| Output Current1-Max | 0.15 |
| Voltage Tolerance-Max | 1 |
| Adjustability | FIXED |
| Operating Temperature TJ-Max | 125 |
| Dropout Voltage1-Nom | 1.05 |
| Output Voltage1-Nom | 3.6 |
| Operating Temperature TJ-Min | -40 |
| Input Voltage Absolute-Max | 33 |
| Dropout Voltage1-Max | 1.5 |
Compliance
| RoHS | Yes |
| REACH | Compliant |
| Military Spec | False |
Datasheet
Diodes AP7383-36W5-7 Datasheet
Download the complete datasheet for Diodes AP7383-36W5-7 to view detailed technical specifications.
No datasheet is available for this part.
