Simple Reset/Power-On Reset IC, featuring a fixed +2.63V threshold voltage. This power management component offers a 200ms reset delay time and 140ms reset timeout, with an active low output. It operates within a supply voltage range of 1.1V to 5.5V and has a maximum power dissipation of 400mW. Packaged in a 3-pin SOT-23 surface mount case, it is RoHS compliant and operates from -40°C to 85°C.
PackageSOT-23
Current30uA
MountingSurface Mount
Power400mW
Quick Jump:
Technical Specifications
Diodes APX809-26SAG-7 technical specifications.
General
| Package/Case | SOT-23 |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 400mW |
| Max Reset Threshold Voltage | 2.69V |
| Min Reset Threshold Voltage | 2.57V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.1V |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Monitored Inputs | 1 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 30uA |
| Output | TOTEM-POLE |
| Overvoltage Threshold | 2.69V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 400mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reset | Active Low |
| Reset Delay Time | 200ms |
| Reset Timeout | 140ms |
| RoHS Compliant | Yes |
| Supply Current | 30uA |
| Threshold Voltage | 2.63V |
| Type | Simple Reset/Power-On Reset |
| Undervoltage Threshold | 2.57V |
| Watchdog Timer | No |
| Weight | 0.000282oz |
| Width | 1.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Diodes APX809-26SAG-7 Datasheet
Download the complete datasheet for Diodes APX809-26SAG-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

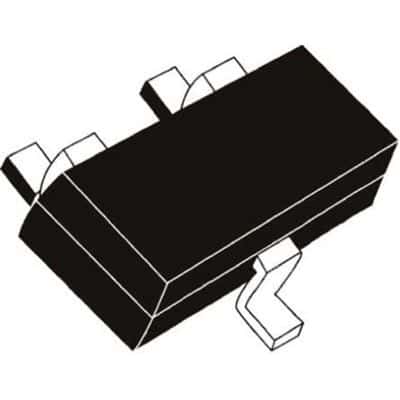

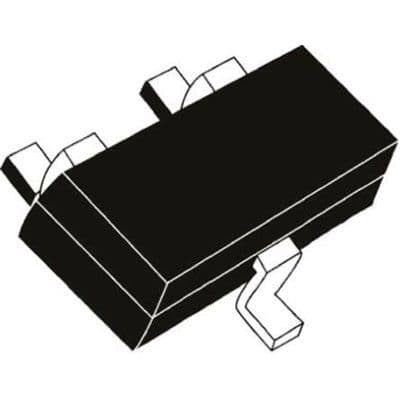

Product Images
