Surface mount rectifier diode featuring Schottky technology for efficient rectification. This general-purpose rectifier offers a 2A average rectified current and a 100V repetitive reverse voltage. Designed for single-phase, single-element applications, it boasts a 50A peak non-repetitive surge current capability and a maximum operating temperature of 175°C. The SMB package provides a compact footprint with standard polarity and SMD/SMT termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Diodes B1100LB-13 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Average Rectified Current | 2A |
| Capacitance | 100pF |
| Package/Case | SMB |
| Current Rating | 1A |
| Forward Current | 2A |
| Height | 2.42mm |
| Lead Free | Contains Lead |
| Length | 4.57mm |
| Max Forward Surge Current (Ifsm) | 50A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 100V |
| Max Reverse Current | 500uA |
| Max Reverse Voltage (DC) | 100V |
| Mount | Surface Mount |
| Output Current | 1A |

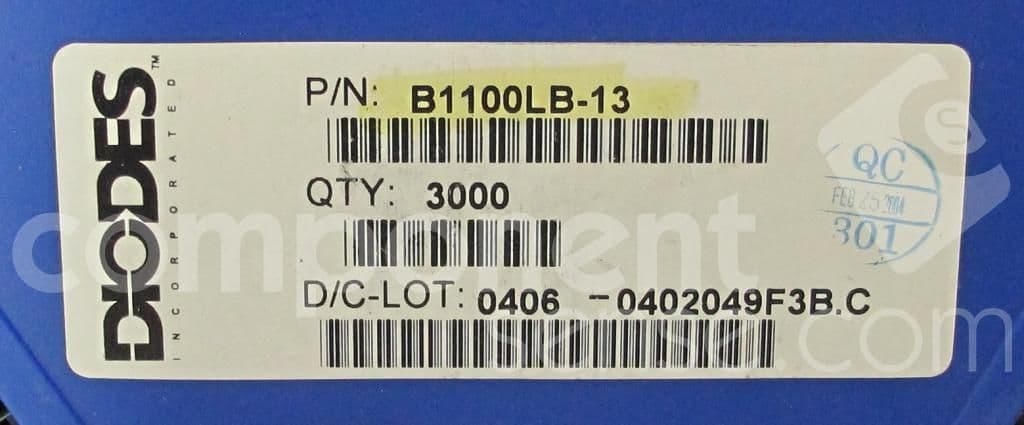

| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 50A |
| Polarity | Standard |
| RoHS Compliant | No |
| Termination | SMD/SMT |
| DC Rated Voltage | 100V |
| Weight | 0.00328oz |
| Width | 3.94mm |
| RoHS | Not Compliant |
