General purpose rectifier diode featuring a 200V repetitive reverse voltage (Vrrm) and 200mA average rectified current. This silicon diode offers a 5pF capacitance and a 50ns reverse recovery time. Encased in a compact SOT-323 surface mount plastic package, it operates within a temperature range of -65°C to 150°C with a maximum power dissipation of 200mW. The component is lead-free and RoHS compliant.
PackageSOT-323
Capacitance5pF
MountingSurface Mount
PolarityStandard
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Diodes BAS21W-7-F datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Diodes BAS21W-7-F technical specifications.
General
| Average Rectified Current | 200mA |
| Capacitance | 5pF |
| Package/Case | SOT-323 |
| Forward Current | 200mA |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 2.2mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 200mW |
| Max Repetitive Reverse Voltage (Vrrm) | 200V |
| Max Reverse Current | 100nA |
| Max Reverse Voltage (DC) | 200V |
| Max Surge Current | 2.5A |
| Mount | Surface Mount |
| Output Current | 200mA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 2.5A |
| Polarity | Standard |
| Power Dissipation | 200mW |
| Radiation Hardening | No |
| Reverse Recovery Time | 50ns |
| Reverse Recovery Time-Max | 50ns |
| RoHS Compliant | Yes |
| Width | 1.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Diodes BAS21W-7-F Datasheet
Download the complete datasheet for Diodes BAS21W-7-F to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

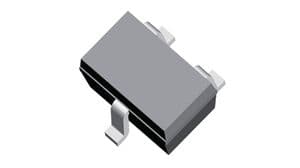

Product Images
