Schottky rectifier diode featuring a 70V repetitive reverse voltage and 70mA average rectified current. This silicon component offers a fast 5ns reverse recovery time and low 2pF capacitance. Designed for surface mounting, it is housed in an ultra-small SOT-363 plastic package with matte tin plating. Operating across a wide temperature range of -55°C to 125°C, this lead-free and RoHS compliant diode is supplied on tape and reel.
PackageSOT-363
Capacitance2pF
Current Rating70mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes BAS70DW-05-7-F technical specifications.
General
Average Rectified Current
70mA
Capacitance
2pF
Package/Case
SOT-363
Contact Plating
Tin, Matte
Current Rating
70mA
Forward Current
70mA
Height
1mm
Lead Free
Lead Free
Length
2.2mm
Max Forward Surge Current (Ifsm)
100mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
200mW
Max Repetitive Reverse Voltage (Vrrm)
70V
Max Reverse Current
100nA
Max Reverse Voltage (DC)
70V
Mount
Surface Mount
Package Quantity
3000
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
100mA
Radiation Hardening
No
Reverse Recovery Time
5ns
RoHS Compliant
Yes
Termination
SMD/SMT
DC Rated Voltage
70V
Weight
0.000212oz
Width
1.35mm
Compliance
RoHS
Compliant
Datasheet
Diodes BAS70DW-05-7-F Datasheet
Download the complete datasheet for Diodes BAS70DW-05-7-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

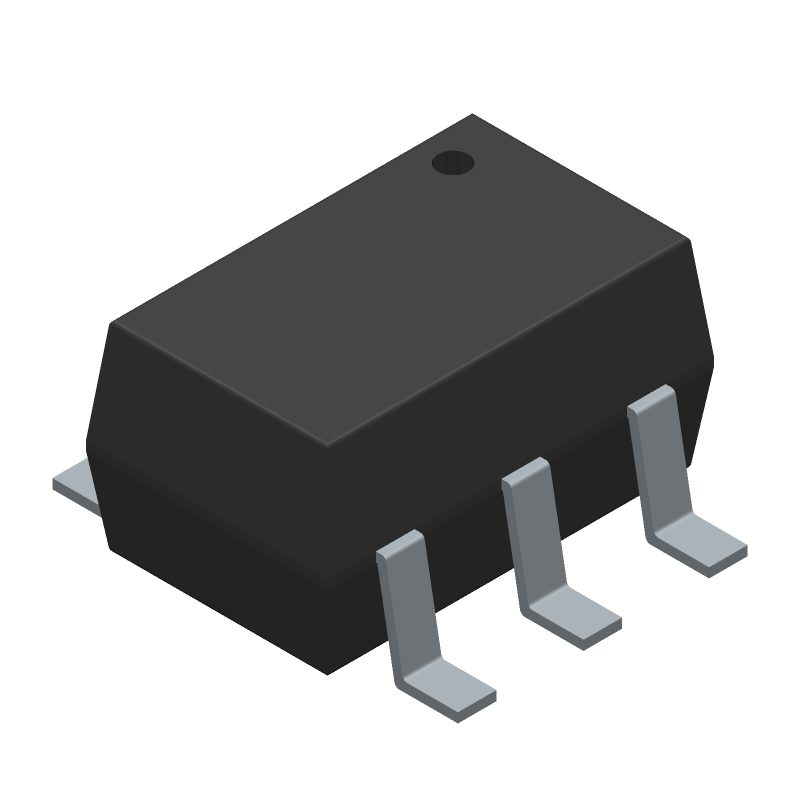

Product Images
