Schottky rectifier diode, featuring two elements for general-purpose rectification. This surface mount component offers a 30V repetitive reverse voltage and 200mA forward current. Designed for high-frequency applications, it boasts a 5ns reverse recovery time and 10pF capacitance. Encased in an ultra-small SOT-523 plastic package, it operates from -65°C to 125°C with 150mW power dissipation.
PackageSOT-523
Capacitance10pF
Current Rating200mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes BAT54CT-7-F technical specifications.
General
| Average Rectified Current | 200mA |
| Capacitance | 10pF |
| Package/Case | SOT-523 |
| Current Rating | 200mA |
| Forward Current | 200mA |
| Height | 0.75mm |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Max Forward Surge Current (Ifsm) | 600mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 150mW |
| Max Repetitive Reverse Voltage (Vrrm) | 30V |
| Max Reverse Current | 2uA |
| Max Reverse Voltage (DC) | 30V |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 600mA |
| Power Dissipation | 150mW |
| Radiation Hardening | No |
| Reverse Recovery Time | 5ns |
| Reverse Voltage | 30V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| DC Rated Voltage | 30V |
| Weight | 7.1E-05oz |
| Width | 0.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Diodes BAT54CT-7-F Datasheet
Download the complete datasheet for Diodes BAT54CT-7-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

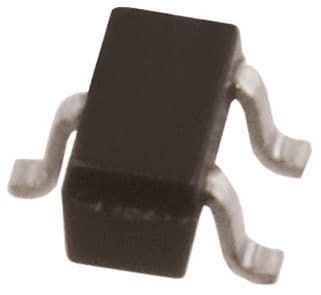

Product Images
