Schottky rectifier diode, 200mA forward current, 30V reverse voltage. Features 200mW power dissipation, 10pF capacitance, and 5ns reverse recovery time. Surface mount SOT-323 package with tin, matte contact plating. Operating temperature range from -65°C to 125°C. RoHS compliant.
PackageSOT-323
Capacitance10pF
Current Rating200mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes BAT54W-7-F technical specifications.
General
| Average Rectified Current | 200mA |
| Capacitance | 10pF |
| Package/Case | SOT-323 |
| Contact Plating | Tin, Matte |
| Current Rating | 200mA |
| Forward Current | 200mA |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 2.2mm |
| Max Forward Surge Current (Ifsm) | 600mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 200mW |
| Max Repetitive Reverse Voltage (Vrrm) | 30V |
| Max Reverse Current | 2uA |
| Max Reverse Voltage (DC) | 30V |
| Mount | Surface Mount |
| Output Current | 200mA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 600mA |
| Polarity | Standard |
| Power Dissipation | 200mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Recovery Time | 5ns |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| DC Rated Voltage | 30V |
| Weight | 0.000212oz |
| Width | 1.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Diodes BAT54W-7-F Datasheet
Download the complete datasheet for Diodes BAT54W-7-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

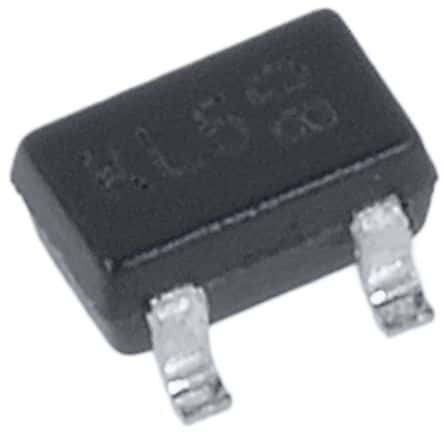

Product Images
