General purpose rectifier diode featuring 85V repetitive reverse voltage and 160mA forward current. This silicon component offers 140mA average rectified current and a low 2pF capacitance. Encased in a lead-free SOT-323 surface mount package, it operates from -65°C to 150°C and handles a 4A surge current. RoHS compliant and designed for tape and reel packaging.
Sign in to ask questions about the Diodes BAV199W-7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Diodes BAV199W-7 technical specifications.
| Average Rectified Current | 140mA |
| Capacitance | 2pF |

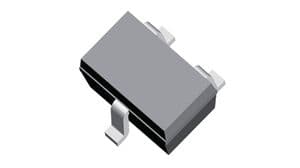

| Package/Case | SOT-323 |
| Current Rating | 140mA |
| Forward Current | 160mA |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 2.2mm |
| Max Forward Surge Current (Ifsm) | 4A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 85V |
| Max Reverse Current | 80nA |
| Max Reverse Voltage (DC) | 85V |
| Max Surge Current | 4A |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 4A |
| Power Dissipation | 200mW |
| Radiation Hardening | No |
| Reverse Recovery Time | 3us |
| Reverse Recovery Time-Max | 3us |
| Reverse Voltage (DC) | 85V |
| RoHS Compliant | Yes |
| DC Rated Voltage | 85V |
| Weight | 0.000212oz |
| Width | 1.35mm |
| RoHS | Compliant |
