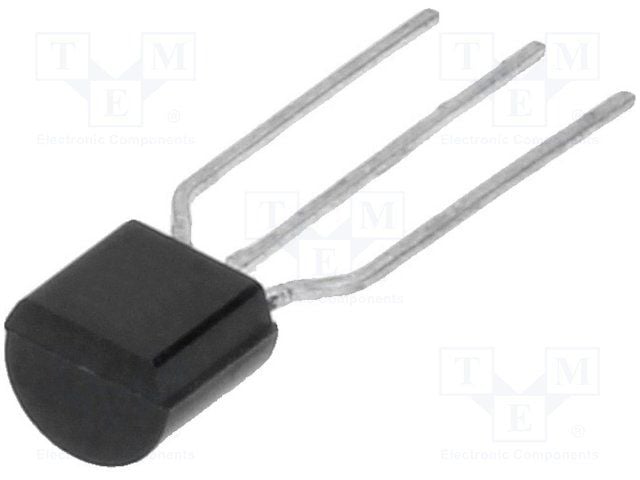

N-Channel Silicon JFET, 200V Drain-Source Voltage (Vdss), 120mA Continuous Drain Current (ID). Features 30 Ohm Max Drain-Source On-Resistance (Rds On), 15 Ohm Drain-Source Resistance. Operates across a -55°C to 150°C temperature range with 500mW power dissipation. Packaged in a TO-92 compatible E-LINE package for through-hole mounting. Lead-free and RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Diodes BS107PSTZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Diodes BS107PSTZ technical specifications.
| Package/Case | TO-92-3 |
| Contact Plating | Tin, Matte |
| Continuous Drain Current (ID) | 120mA |
| Current Rating | 120mA |
| Drain to Source Breakdown Voltage | 200V |
| Drain to Source Resistance | 15R |
| Drain to Source Voltage (Vdss) | 200V |
| Fall Time | 8ns |
| Gate to Source Voltage (Vgs) | 20V |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500mW |
| Mount | Through Hole |
| Number of Channels | 1 |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Power Dissipation | 500mW |
| Rds On Max | 30R |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Turn-Off Delay Time | 16ns |
| Turn-On Delay Time | 7ns |
| DC Rated Voltage | 200V |
| Weight | 0.016oz |
| RoHS | Compliant |
