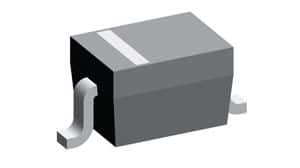

Unidirectional Zener Diode with a 10V working voltage and 6% tolerance. This 0.2W silicon component features a maximum power dissipation of 200mW and a low reverse leakage current of 100nA. Designed for surface mount applications, it operates within a temperature range of -65°C to 150°C and is packaged in a tape and reel format. The diode measures 1.8mm in length, 1.4mm in width, and 1mm in height, with an impedance of 20 Ohms.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Diodes BZT52C10S-7-F datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Height | 1mm |
| Impedance | 20R |
| Lead Free | Lead Free |
| Length | 1.8mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 200mW |
| Max Reverse Current | 100nA |
| Max Reverse Leakage Current | 100nA |
| Mount | Surface Mount |
| Output Current | 50mA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 200mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Tolerance | 6% |
| DC Rated Voltage | 10V |
| Voltage Tolerance | 6% |
| Weight | 0.000173oz |
| Width | 1.4mm |
| Working Voltage | 10V |
| Zener Current | 5mA |
| Zener Voltage | 10V |
| RoHS | Compliant |
