Surface mount Zener diode with a 16V DC rated voltage and 6% voltage tolerance. Features 300mW power dissipation, 5mA Zener current, and 40 Ohm impedance. This unidirectional silicon diode operates from -65°C to 150°C, with a maximum reverse leakage current of 100nA. Packaged in tape and reel, it offers a 0.3W power rating and is RoHS compliant.
Voltage Rating16V
MountingSurface Mount
Power300mW
Quick Jump:
Technical Specifications
Diodes BZT52C16T-7 technical specifications.
General
Contact Plating
Tin, Matte
ESD Protection
No
Height
0.7mm
Impedance
40R
Lead Free
Lead Free
Length
1.3mm
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
300mW
Max Reverse Current
100nA
Max Reverse Leakage Current
100nA
Mount
Surface Mount
Output Current
50mA
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
300mW
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Tolerance
6%
DC Rated Voltage
16V
Voltage Tolerance
6%
Weight
3.5E-05oz
Width
0.9mm
Working Voltage
16V
Zener Current
5mA
Zener Voltage
16V
Compliance
RoHS
Compliant
Datasheet
Diodes BZT52C16T-7 Datasheet
Download the complete datasheet for Diodes BZT52C16T-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

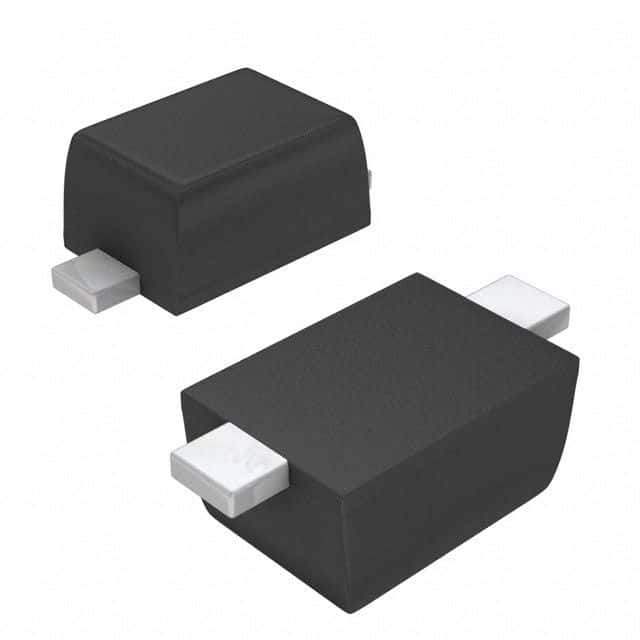

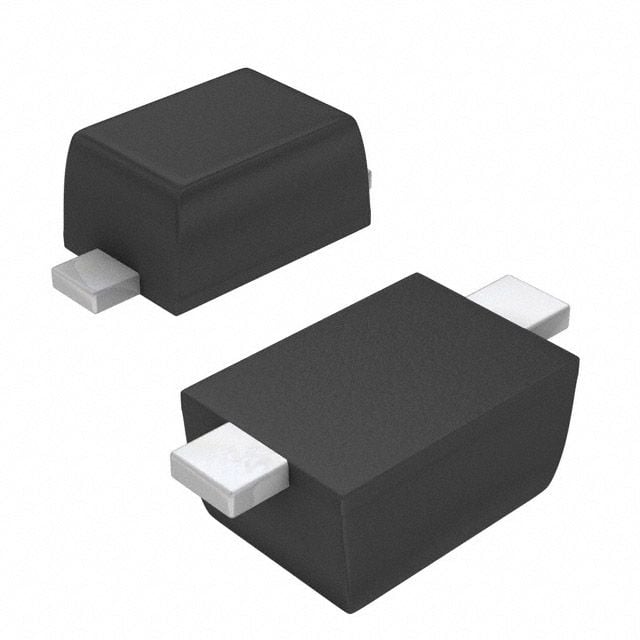

Product Images
