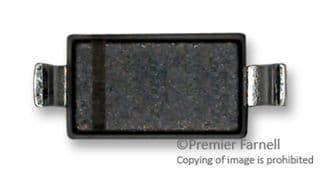

Surface mount Zener diode featuring a 2.4V DC rated voltage with 8% tolerance. This unidirectional silicon diode offers 0.37W power dissipation, a maximum reverse leakage current of 50µA, and a zener current of 5mA. Operating across a wide temperature range from -65°C to 150°C, it is housed in a compact plastic package with tin matte contact plating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Diodes BZT52C2V4-7-F datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Diodes BZT52C2V4-7-F technical specifications.
| Contact Plating | Tin, Matte |
| ESD Protection | No |
| Height | 1.35mm |
| Impedance | 100R |
| Lead Free | Lead Free |
| Length | 2.85mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 500mW |
| Max Reverse Current | 50uA |
| Max Reverse Leakage Current | 50uA |
| Mount | Surface Mount |
| Output Current | 50mA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 500mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Tolerance | 8% |
| DC Rated Voltage | 2.4V |
| Voltage Tolerance | 8% |
| Weight | 0.000353oz |
| Width | 1.7mm |
| Working Voltage | 2.4V |
| Zener Current | 5mA |
| Zener Voltage | 2.4V |
| RoHS | Compliant |
