Diodes
BZX84B16-7-F
Zener Diode, 16V V(Z), 2%, 0.35W, Silicon, Unidirectional, GREEN, PLASTIC PACKAGE-3
PackageSOT-23
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes BZX84B16-7-F technical specifications.
General
| Package/Case | SOT-23 |
| Contact Plating | Tin, Matte |
| ESD Protection | No |
| Height | 1.1mm |
| Impedance | 40R |
| Length | 3mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 350mW |
| Max Reverse Leakage Current | 100nA |
| Mount | Surface Mount |
| Packaging | Cut Tape |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Tolerance | 2% |
| Width | 1.4mm |
| Zener Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Diodes BZX84B16-7-F Datasheet
Download the complete datasheet for Diodes BZX84B16-7-F to view detailed technical specifications.
No datasheet is available for this part.

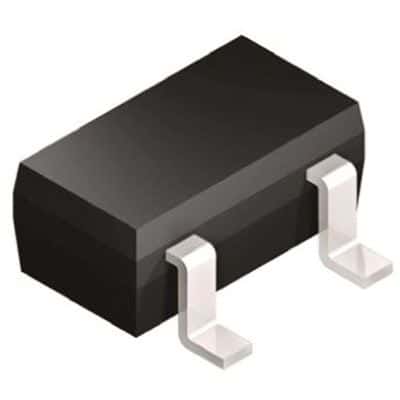

Product Images
